Step1: Product

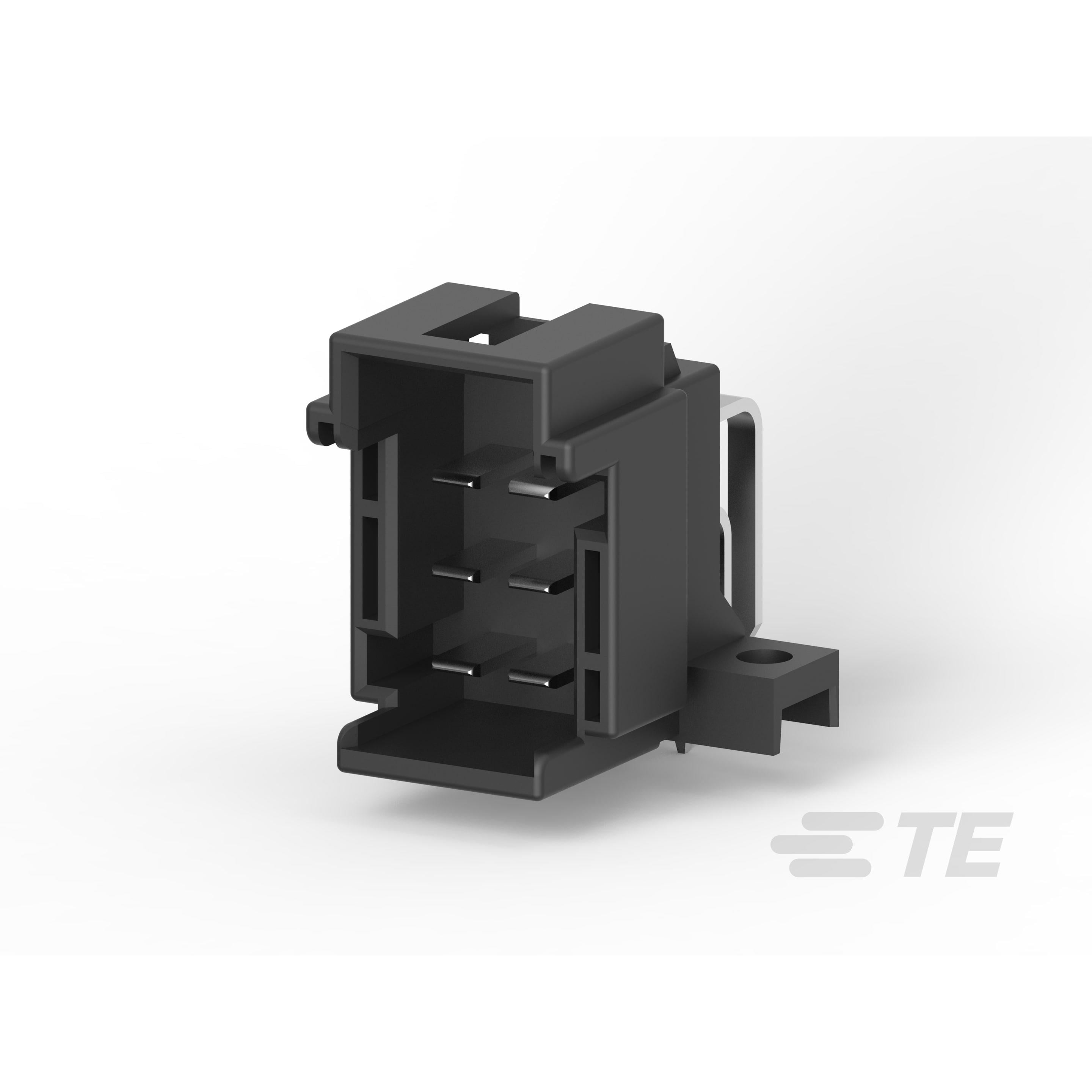

TE Connectivity Deutsch Connectors 966140-5
Images are for reference only
Manufacturer
Manufacturer No
966140-5
Quantity
5
Availability
In Stock
Packaging
Tray
Description
MESSERLEISTE 6P
Detailed Description
Connector Header Through Hole, Right Angle 5 position 0.138" (3.50mm)
Datasheet
Payment
Delivery
Mfr
TE Connectivity Deutsch Connectors
Style
Board to Cable/Wire
Series
MCP
Features
Mounting Flange
Packaging
Tray
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
-
Contact Type
Tab
Contact Shape
Rectangular
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
3
Pitch - Mating
0.138" (3.50mm)
Voltage Rating
28VDC
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
1.012" (25.70mm)
Ingress Protection
-
Base Product Number
966140
Insulation Material
Polyamide (PA66), Nylon 6/6, Glass Filled
Number of Positions
5
Row Spacing - Mating
0.217" (5.50mm)
Contact Finish - Post
Silver
Contact Length - Post
0.118" (3.00mm)
Current Rating (Amps)
-
Operating Temperature
-30°C ~ 100°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Silver
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
UL94 HB
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Deutsch Connectors |
| Style | Board to Cable/Wire |
| Series | MCP |
| Features | Mounting Flange |
| Packaging | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | - |
| Contact Type | Tab |
| Contact Shape | Rectangular |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 3 |
| Pitch - Mating | 0.138" (3.50mm) |
| Voltage Rating | 28VDC |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 1.012" (25.70mm) |
| Ingress Protection | - |
| Base Product Number | 966140 |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Number of Positions | 5 |
| Row Spacing - Mating | 0.217" (5.50mm) |
| Contact Finish - Post | Silver |
| Contact Length - Post | 0.118" (3.00mm) |
| Current Rating (Amps) | - |
| Operating Temperature | -30°C ~ 100°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Silver |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 HB |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
