Step1: Product

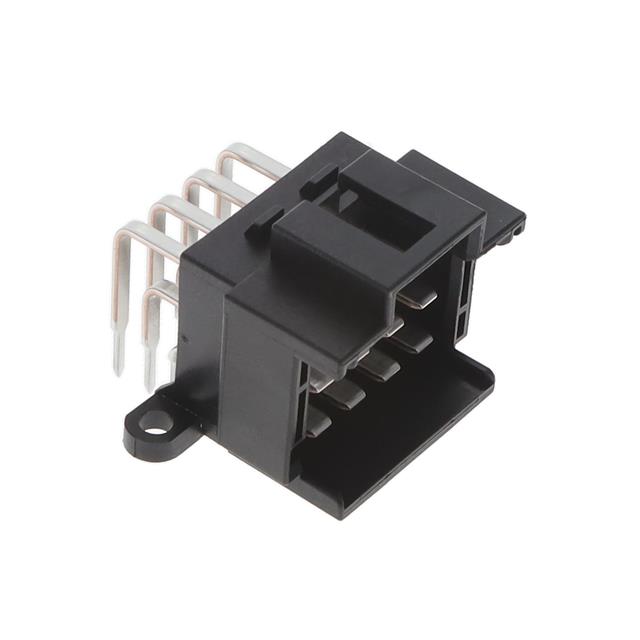

TE Connectivity AMP Connectors 966140-3
Images are for reference only
Manufacturer
Manufacturer No
966140-3
Quantity
10
Availability
In Stock
Packaging
Tray
Description
CONN HEADER R/A 12POS 5MM
Detailed Description
Connector Header Through Hole, Right Angle 12 position 0.197" (5.00mm)
Datasheet
Payment
Delivery
Mfr
TE Connectivity AMP Connectors
Style
Board to Board or Cable
Series
MCP
Features
Mounting Flange
Packaging
Tray
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
Automotive, General Purpose
Contact Type
Tab
Contact Shape
Rectangular
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
3
Pitch - Mating
0.197" (5.00mm)
Voltage Rating
-
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
1.012" (25.70mm)
Ingress Protection
-
Base Product Number
966140
Insulation Material
Polyamide (PA66), Nylon 6/6, Glass Filled
Number of Positions
12
Row Spacing - Mating
0.217" (5.51mm)
Contact Finish - Post
-
Contact Length - Post
0.118" (3.00mm)
Current Rating (Amps)
-
Operating Temperature
-40°C ~ 100°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Tin
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
-
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Board or Cable |
| Series | MCP |
| Features | Mounting Flange |
| Packaging | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose |
| Contact Type | Tab |
| Contact Shape | Rectangular |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 3 |
| Pitch - Mating | 0.197" (5.00mm) |
| Voltage Rating | - |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 1.012" (25.70mm) |
| Ingress Protection | - |
| Base Product Number | 966140 |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Number of Positions | 12 |
| Row Spacing - Mating | 0.217" (5.51mm) |
| Contact Finish - Post | - |
| Contact Length - Post | 0.118" (3.00mm) |
| Current Rating (Amps) | - |
| Operating Temperature | -40°C ~ 100°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | - |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
