Step1: Product
TE Connectivity AMP Connectors 5415006-2

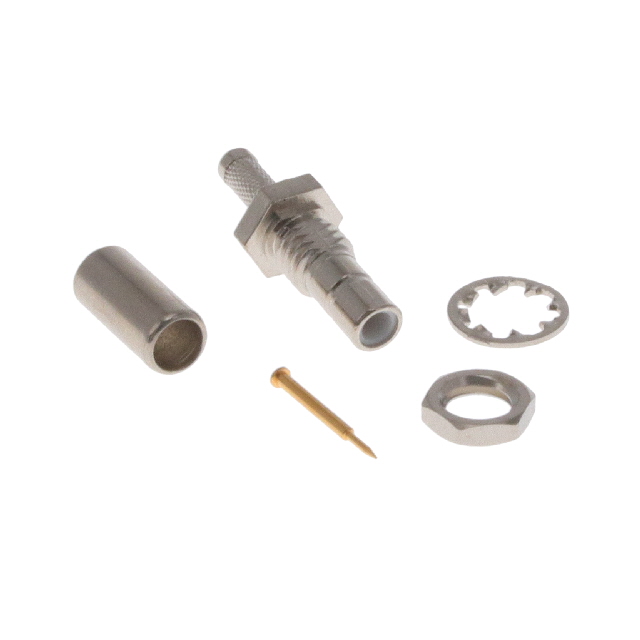

Images are for reference only
Manufacturer
Manufacturer No
5415006-2
Availability
In Stock
Packaging
Bulk
Description
CONN SMB JACK STR 50 OHM CRIMP
Detailed Description
SMB Connector Jack, Male Pin 50 Ohms Panel Mount Crimp
Datasheet
Payment
Delivery
Mfr
TE Connectivity AMP Connectors
Series
-
Features
-
Includes
5 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut
Impedance
50 Ohms
Packaging
Bulk
Body Finish
Nickel
Cable Group
RD-316
Body Material
-
Housing Color
Silver
Mating Cycles
500
Mounting Type
Panel Mount
Connector Type
Jack, Male Pin
Fastening Type
Snap-On
Insertion Loss
0.3dB
Voltage Rating
335 V
Connector Style
SMB
Frequency - Max
4 GHz
Number of Ports
1
Mounting Feature
Bulkhead - Front Side Nut
Ingress Protection
-
Shield Termination
Crimp
Base Product Number
5415006
Contact Termination
Crimp
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
-
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Series | - |
| Features | - |
| Includes | 5 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut |
| Impedance | 50 Ohms |
| Packaging | Bulk |
| Body Finish | Nickel |
| Cable Group | RD-316 |
| Body Material | - |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Panel Mount |
| Connector Type | Jack, Male Pin |
| Fastening Type | Snap-On |
| Insertion Loss | 0.3dB |
| Voltage Rating | 335 V |
| Connector Style | SMB |
| Frequency - Max | 4 GHz |
| Number of Ports | 1 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Ingress Protection | - |
| Shield Termination | Crimp |
| Base Product Number | 5415006 |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | - |
