Step1: Product

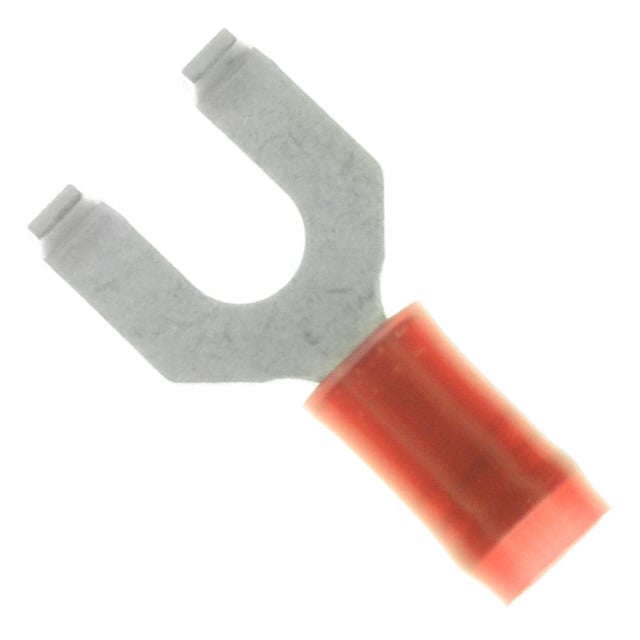

TE Connectivity AMP Connectors 2-32498-1
Images are for reference only
Manufacturer
Manufacturer No
2-32498-1
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN SPADE TERM 16-22AWG #8 RED
Detailed Description
Red 8 Stud Spade Terminal Connector Crimp 16-22 AWG
Datasheet
Payment
Delivery
Color
Red
Series
PIDG
Features
Serrated Termination
Packaging
Tape & Reel (TR); Cut Tape (CT)
Insulation
Insulated
Wire Gauge
16-22 AWG
Termination
Crimp
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Free Hanging (In-Line)
Stud/Tab Size
8 Stud
Terminal Type
Flanged
Contact Finish
Tin
Contact Material
Copper
Length - Overall
0.830" (21.08mm)
Base Product Number
32498
Insulation Diameter
0.105" ~ 0.140" (2.67mm ~ 3.56mm)
Width - Outer Edges
0.416" (10.57mm)
Length - Termination
0.404" (10.26mm)
Material - Insulation
Polyamide (PA), Nylon
Tongue Inside Opening
0.171" (4.34mm)
Length - Ring Center to Termination
0.250" (6.35mm)
| Attribute | Value |
|---|---|
| Color | Red |
| Series | PIDG |
| Features | Serrated Termination |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Insulation | Insulated |
| Wire Gauge | 16-22 AWG |
| Termination | Crimp |
| Manufacturer | TE Connectivity AMP Connectors |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 8 Stud |
| Terminal Type | Flanged |
| Contact Finish | Tin |
| Contact Material | Copper |
| Length - Overall | 0.830" (21.08mm) |
| Base Product Number | 32498 |
| Insulation Diameter | 0.105" ~ 0.140" (2.67mm ~ 3.56mm) |
| Width - Outer Edges | 0.416" (10.57mm) |
| Length - Termination | 0.404" (10.26mm) |
| Material - Insulation | Polyamide (PA), Nylon |
| Tongue Inside Opening | 0.171" (4.34mm) |
| Length - Ring Center to Termination | 0.250" (6.35mm) |
