Step1: Product

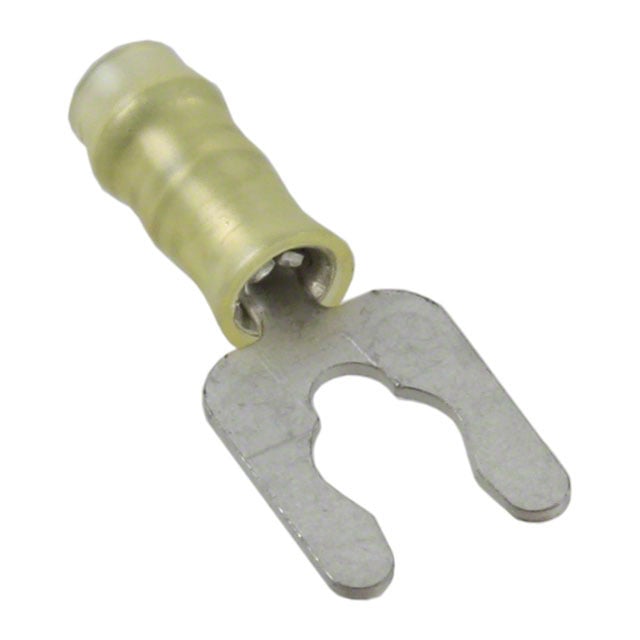

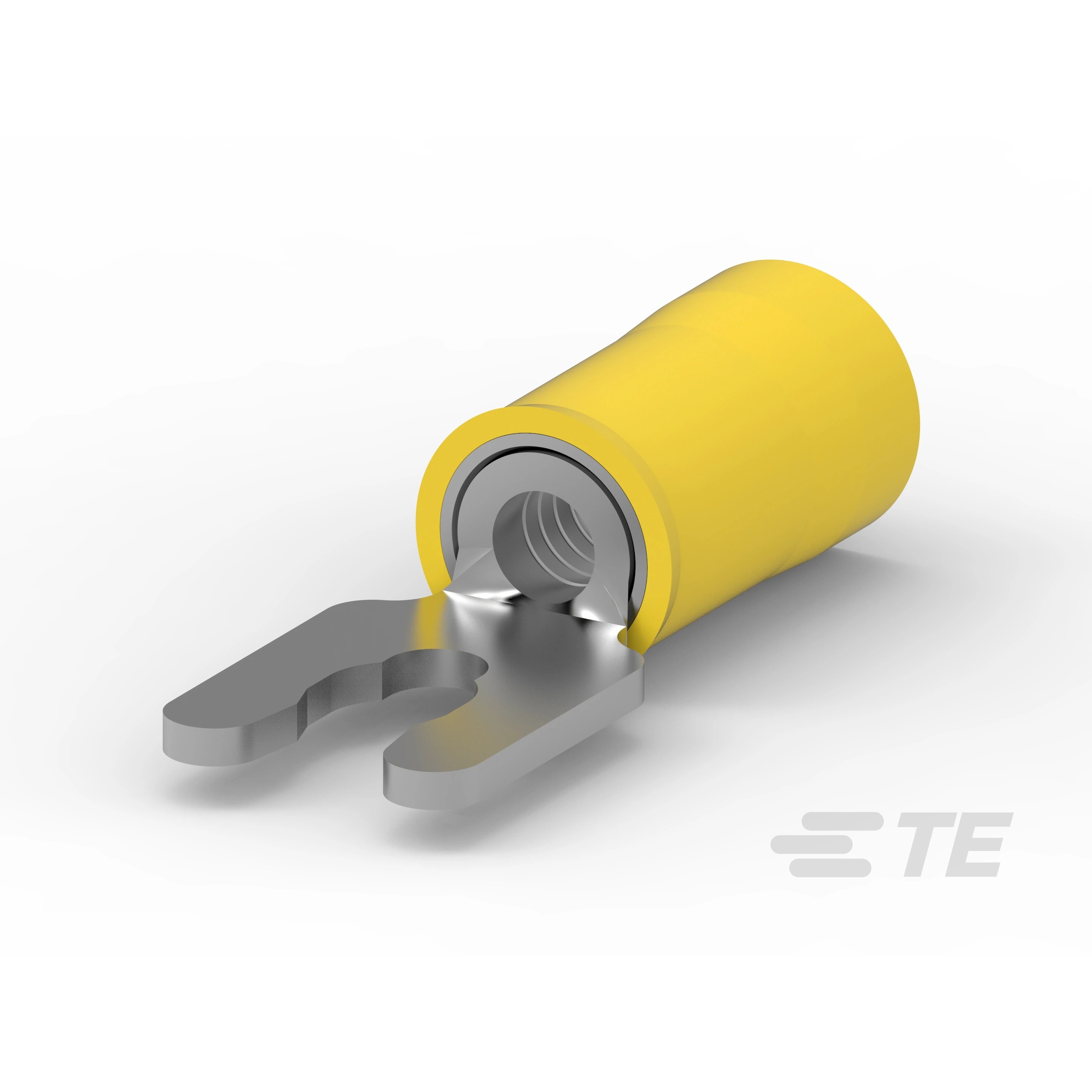

TE Connectivity AMP Connectors 52924
Images are for reference only
Manufacturer
Manufacturer No
52924
Quantity
2,000
Availability
In Stock
Packaging
Bulk
Description
CONN SPADE TERM 22-26AWG #6 YEL
Detailed Description
Yellow 6 Stud Spade Terminal Connector Crimp 22-26 AWG
Datasheet
Payment
Delivery
Color
Yellow
Series
PIDG
Features
Serrated Termination
Packaging
Bulk
Insulation
Insulated
Wire Gauge
22-26 AWG
Termination
Crimp
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Free Hanging (In-Line)
Stud/Tab Size
6 Stud
Terminal Type
Spring, Snap
Contact Finish
Tin
Contact Material
Phosphor Bronze
Length - Overall
0.679" (17.25mm)
Base Product Number
5292
Insulation Diameter
0.050" ~ 0.082" (1.27mm ~ 2.08mm)
Width - Outer Edges
0.250" (6.35mm)
Length - Termination
0.331" (8.41mm)
Material - Insulation
Polyamide (PA), Nylon
Tongue Inside Opening
0.140" (3.56mm)
Length - Ring Center to Termination
0.203" (5.16mm)
| Attribute | Value |
|---|---|
| Color | Yellow |
| Series | PIDG |
| Features | Serrated Termination |
| Packaging | Bulk |
| Insulation | Insulated |
| Wire Gauge | 22-26 AWG |
| Termination | Crimp |
| Manufacturer | TE Connectivity AMP Connectors |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 6 Stud |
| Terminal Type | Spring, Snap |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Length - Overall | 0.679" (17.25mm) |
| Base Product Number | 5292 |
| Insulation Diameter | 0.050" ~ 0.082" (1.27mm ~ 2.08mm) |
| Width - Outer Edges | 0.250" (6.35mm) |
| Length - Termination | 0.331" (8.41mm) |
| Material - Insulation | Polyamide (PA), Nylon |
| Tongue Inside Opening | 0.140" (3.56mm) |
| Length - Ring Center to Termination | 0.203" (5.16mm) |
