Step1: Product

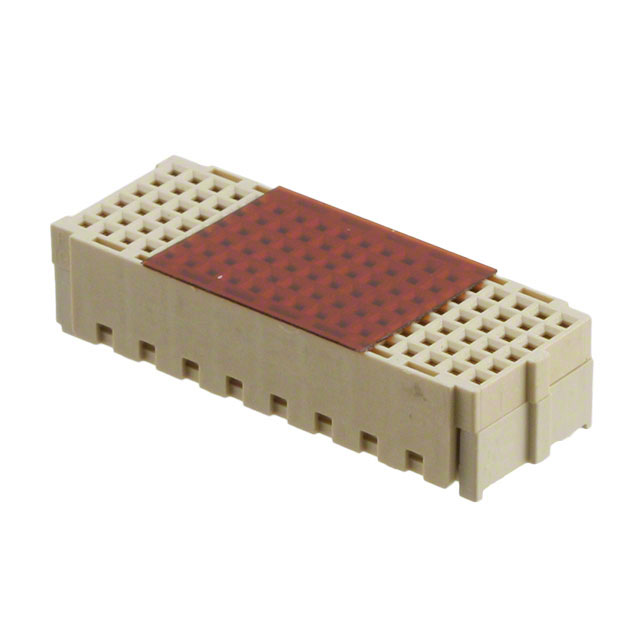

TE Connectivity Aerospace, Defense and Marine 2102061-1
Images are for reference only
Manufacturer
Manufacturer No
2102061-1
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN RCPT 114POS 0.05 GOLD SMD
Detailed Description
114 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
Datasheet
Payment
Delivery
Mfr
TE Connectivity Aerospace, Defense and Marine
Style
Board to Board
Series
Mezalok, VITA 61
Features
Pick and Place
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Applications
General Purpose, Military
Contact Type
Female Socket
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
6
Pitch - Mating
0.050" (1.27mm)
Voltage Rating
250VAC
Contact Material
Beryllium Copper
Insulation Color
Natural
Insulation Height
0.236" (6.00mm)
Ingress Protection
-
Base Product Number
2102061
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
114
Row Spacing - Mating
0.050" (1.27mm)
Contact Finish - Post
Tin-Lead
Contact Length - Post
-
Current Rating (Amps)
-
Operating Temperature
-55°C ~ 125°C
Mated Stacking Heights
10mm
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
-
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
50.0µin (1.27µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Aerospace, Defense and Marine |
| Style | Board to Board |
| Series | Mezalok, VITA 61 |
| Features | Pick and Place |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Applications | General Purpose, Military |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 6 |
| Pitch - Mating | 0.050" (1.27mm) |
| Voltage Rating | 250VAC |
| Contact Material | Beryllium Copper |
| Insulation Color | Natural |
| Insulation Height | 0.236" (6.00mm) |
| Ingress Protection | - |
| Base Product Number | 2102061 |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 114 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Contact Finish - Post | Tin-Lead |
| Contact Length - Post | - |
| Current Rating (Amps) | - |
| Operating Temperature | -55°C ~ 125°C |
| Mated Stacking Heights | 10mm |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | - |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
