Step1: Product

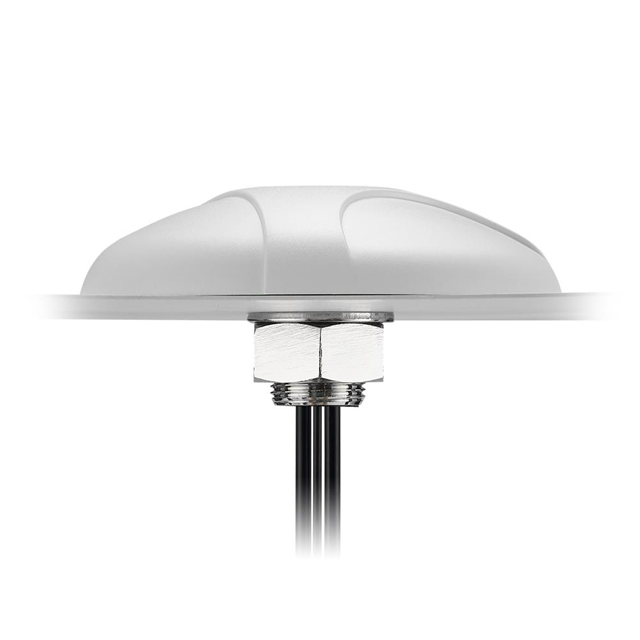

Taoglas Limited MA600.W.A.ABC.001
Images are for reference only
Manufacturer
Manufacturer No
MA600.W.A.ABC.001
Availability
In Stock
Packaging
Box
Description
RF ANT 892MHZ/1.6GHZ DOME SMA ML
Detailed Description
RF ANTENNA CDMA, GPS, GSM, UMTS Dome SMA Male Panel Mount
Datasheet
Payment
Delivery
Gain
32dBi, 2.1dBi, 5.1dBi, 2.1dBi, 3.8dBi
VSWR
2, 1.6
Series
Spartan
Features
LNA, Filter
Packaging
Box
Return Loss
-
Termination
SMA Male
Antenna Type
Dome
Applications
CDMA, GPS, GSM, UMTS
Height (Max)
1.555" (39.50mm)
Manufacturer
Taoglas Limited
Mounting Type
Panel Mount
Frequency Group
Wide Band
Frequency Range
824MHz ~ 960MHz, 1.575GHz ~ 1.602GHz 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 4.7GHz ~ 5.9GHz
Number of Bands
5
Ingress Protection
IP67
RF Family/Standard
Cellular, Navigation
Base Product Number
MA600
Frequency (Center/Band)
892MHz, 1.6GHz, 1.9GHz, 2.4GHz, 5.3GHz
| Attribute | Value |
|---|---|
| Gain | 32dBi, 2.1dBi, 5.1dBi, 2.1dBi, 3.8dBi |
| VSWR | 2, 1.6 |
| Series | Spartan |
| Features | LNA, Filter |
| Packaging | Box |
| Return Loss | - |
| Termination | SMA Male |
| Antenna Type | Dome |
| Applications | CDMA, GPS, GSM, UMTS |
| Height (Max) | 1.555" (39.50mm) |
| Manufacturer | Taoglas Limited |
| Mounting Type | Panel Mount |
| Frequency Group | Wide Band |
| Frequency Range | 824MHz ~ 960MHz, 1.575GHz ~ 1.602GHz 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 4.7GHz ~ 5.9GHz |
| Number of Bands | 5 |
| Ingress Protection | IP67 |
| RF Family/Standard | Cellular, Navigation |
| Base Product Number | MA600 |
| Frequency (Center/Band) | 892MHz, 1.6GHz, 1.9GHz, 2.4GHz, 5.3GHz |
