Step1: Product

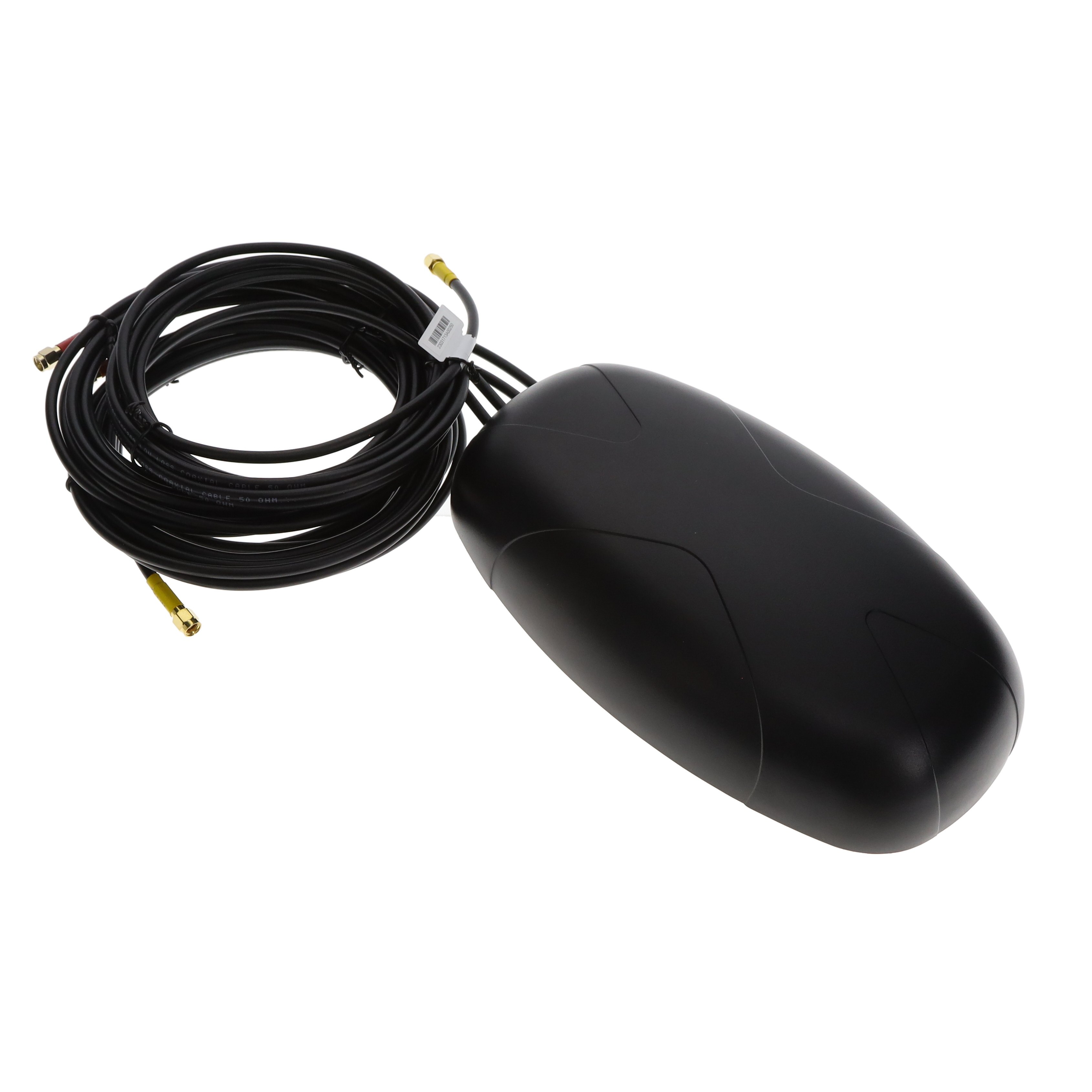

Taoglas Limited MA354.A.BICG.001
Images are for reference only
Manufacturer
Manufacturer No
MA354.A.BICG.001
Availability
In Stock
Packaging
Box
Description
4 IN1 MAGNET MNT ANT 3M SMA(M)
Detailed Description
RF ANTENNA 3G, 4G, 5G, HSPA, HSPA+, LTE, WCDMA, Wi-Fi Module RP-SMA Male, SMA Male Magnetic
Datasheet
Payment
Delivery
Gain
1.6dBi, 3.5dBi, 5dBi, 5.1dBi, 6.6dBi, 4.2dBi, 6.9dBi, 5.9dBi, 3.3dBi, 7.7dBi, 3.9dBi
VSWR
-
Series
Steedan
Features
Cable - 3m
Packaging
Box
Power - Max
10 W
Return Loss
-
Termination
RP-SMA Male, SMA Male
Antenna Type
Module
Applications
3G, 4G, 5G, HSPA, HSPA+, LTE, WCDMA, Wi-Fi
Height (Max)
1.881" (47.78mm)
Manufacturer
Taoglas Limited
Mounting Type
Magnetic
Frequency Group
Wide Band
Frequency Range
617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 5.15GHz ~ 5.85GHz, 5.15GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz
Number of Bands
11
Ingress Protection
IP65
RF Family/Standard
Cellular, WiFi
Base Product Number
MA354
Frequency (Center/Band)
657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.45GHz, 2.495GHz, 3.75GHz, 5.5GHz, 5.5375GHz, 6.1375GHz
| Attribute | Value |
|---|---|
| Gain | 1.6dBi, 3.5dBi, 5dBi, 5.1dBi, 6.6dBi, 4.2dBi, 6.9dBi, 5.9dBi, 3.3dBi, 7.7dBi, 3.9dBi |
| VSWR | - |
| Series | Steedan |
| Features | Cable - 3m |
| Packaging | Box |
| Power - Max | 10 W |
| Return Loss | - |
| Termination | RP-SMA Male, SMA Male |
| Antenna Type | Module |
| Applications | 3G, 4G, 5G, HSPA, HSPA+, LTE, WCDMA, Wi-Fi |
| Height (Max) | 1.881" (47.78mm) |
| Manufacturer | Taoglas Limited |
| Mounting Type | Magnetic |
| Frequency Group | Wide Band |
| Frequency Range | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 5.15GHz ~ 5.85GHz, 5.15GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz |
| Number of Bands | 11 |
| Ingress Protection | IP65 |
| RF Family/Standard | Cellular, WiFi |
| Base Product Number | MA354 |
| Frequency (Center/Band) | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.45GHz, 2.495GHz, 3.75GHz, 5.5GHz, 5.5375GHz, 6.1375GHz |
