Step1: Product

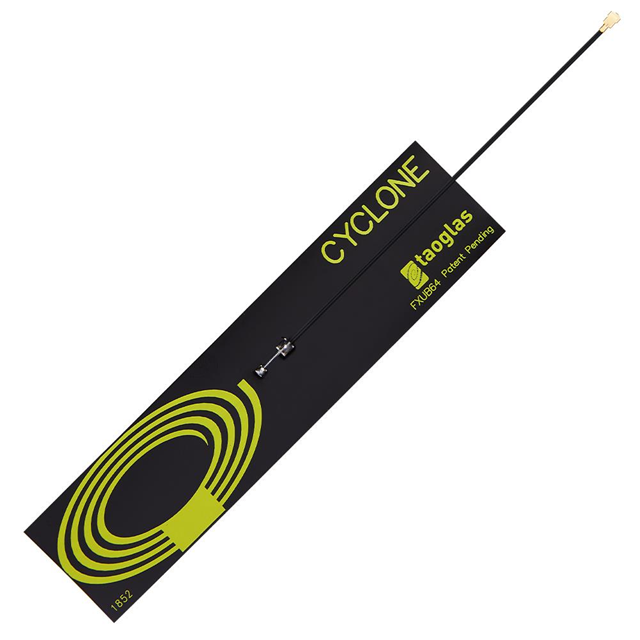

Taoglas Limited FXUB64.18.0150A
Images are for reference only
Manufacturer
Manufacturer No
FXUB64.18.0150A
Availability
In Stock
Packaging
Bag
Description
GPS/GALILEO & 2.4GHZ MULTI-BAND
Detailed Description
RF ANTENNA LTE Flat Patch U.FL (UMCC), I-PEX MHF1 Adhesive
Datasheet
Payment
Delivery
Gain
3.5dBi, 4.5dBi, 6dBi, 6dBi, 3.7dBi, 2.3dBi
VSWR
-
Series
-
Features
Cable - 150mm
Packaging
Bag
Power - Max
50 W
Return Loss
4dB, -7dB, -10dB, -10dB, -5dB, -4dB
Termination
U.FL (UMCC), I-PEX MHF1
Antenna Type
Flat Patch
Applications
LTE
Height (Max)
0.008" (0.20mm)
Manufacturer
Taoglas Limited
Mounting Type
Adhesive
Frequency Group
Wide Band
Frequency Range
617MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 1.755GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.69GHz
Number of Bands
7
Ingress Protection
-
RF Family/Standard
Cellular
Base Product Number
FXUB64
Frequency (Center/Band)
788.5MHz, 1.575GHz, 1.85GHz, 1.9625GHz, 2.45GHz, 2.595GHz
| Attribute | Value |
|---|---|
| Gain | 3.5dBi, 4.5dBi, 6dBi, 6dBi, 3.7dBi, 2.3dBi |
| VSWR | - |
| Series | - |
| Features | Cable - 150mm |
| Packaging | Bag |
| Power - Max | 50 W |
| Return Loss | 4dB, -7dB, -10dB, -10dB, -5dB, -4dB |
| Termination | U.FL (UMCC), I-PEX MHF1 |
| Antenna Type | Flat Patch |
| Applications | LTE |
| Height (Max) | 0.008" (0.20mm) |
| Manufacturer | Taoglas Limited |
| Mounting Type | Adhesive |
| Frequency Group | Wide Band |
| Frequency Range | 617MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 1.755GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.69GHz |
| Number of Bands | 7 |
| Ingress Protection | - |
| RF Family/Standard | Cellular |
| Base Product Number | FXUB64 |
| Frequency (Center/Band) | 788.5MHz, 1.575GHz, 1.85GHz, 1.9625GHz, 2.45GHz, 2.595GHz |
