Same Sky (Formerly CUI Devices) PJ-112BH

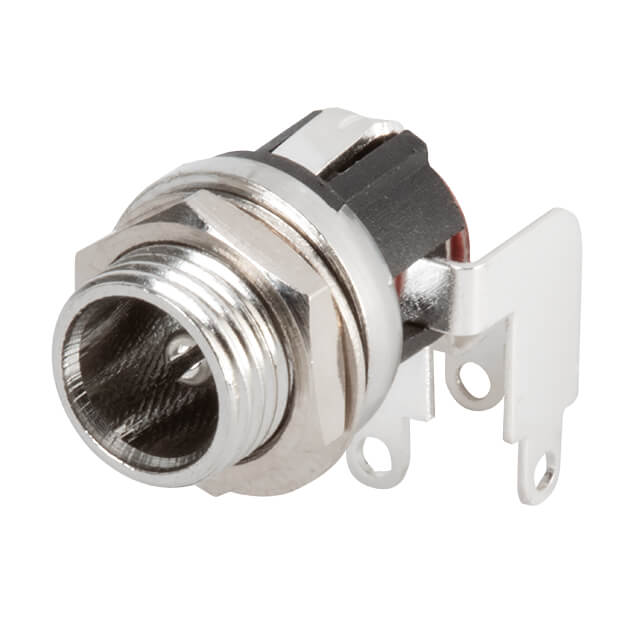

Images are for reference only

Manufacturer

Same Sky (Formerly CUI Devices)

Manufacturer No

PJ-112BH

Packaging

Box

Description

2.5 X 5.7 MM, 3.0 A, HORIZONTAL,

Detailed Description

Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Panel Mount, Through Hole, Right Angle

Datasheet

PJ-112BH

Payment

Delivery

Gender

Male

Series

-

Features

Mounting Hardware

Includes

-

Packaging

Box

Shielding

Unshielded

Body Color

-

Termination

Solder Eyelet(s)

Thread Size

M8x0.75

Manufacturer

Same Sky (Formerly CUI Devices)

Body Material

-

Mounting Type

Panel Mount, Through Hole, Right Angle

Connector Type

Jack

Actual Diameter

0.098" (2.50mm ID), 0.224" (5.70mm OD)

Voltage - Rated

12VDC

Contact Material

Brass, Phosphor Bronze

Housing Material

Polybutylene Terephthalate (PBT)

Insulation Color

Black

Mounting Feature

Bulkhead - Front Side Nut

Ingress Protection

-

Internal Switch(s)

Single Switch

Mating Length/Depth

0.362" (9.20mm)

Current Rating (Amps)

5 A

Operating Temperature

-20°C ~ 70°C

Contact Material - Plating

Silver

Material Flammability Rating

UL94 V-0

Number of Positions/Contacts

2 Conductors, 3 Contacts

Industry Recognized Mating Diameter

2.50mm ID (0.098"), 5.50mm OD (0.217")

Attribute	Value
Gender	Male
Series	-
Features	Mounting Hardware
Includes	-
Packaging	Box
Shielding	Unshielded
Body Color	-
Termination	Solder Eyelet(s)
Thread Size	M8x0.75
Manufacturer	Same Sky (Formerly CUI Devices)
Body Material	-
Mounting Type	Panel Mount, Through Hole, Right Angle
Connector Type	Jack
Actual Diameter	0.098" (2.50mm ID), 0.224" (5.70mm OD)
Voltage - Rated	12VDC
Contact Material	Brass, Phosphor Bronze
Housing Material	Polybutylene Terephthalate (PBT)
Insulation Color	Black
Mounting Feature	Bulkhead - Front Side Nut
Ingress Protection	-
Internal Switch(s)	Single Switch
Mating Length/Depth	0.362" (9.20mm)
Current Rating (Amps)	5 A
Operating Temperature	-20°C ~ 70°C
Contact Material - Plating	Silver
Material Flammability Rating	UL94 V-0
Number of Positions/Contacts	2 Conductors, 3 Contacts
Industry Recognized Mating Diameter	2.50mm ID (0.098"), 5.50mm OD (0.217")
