Step1: Product

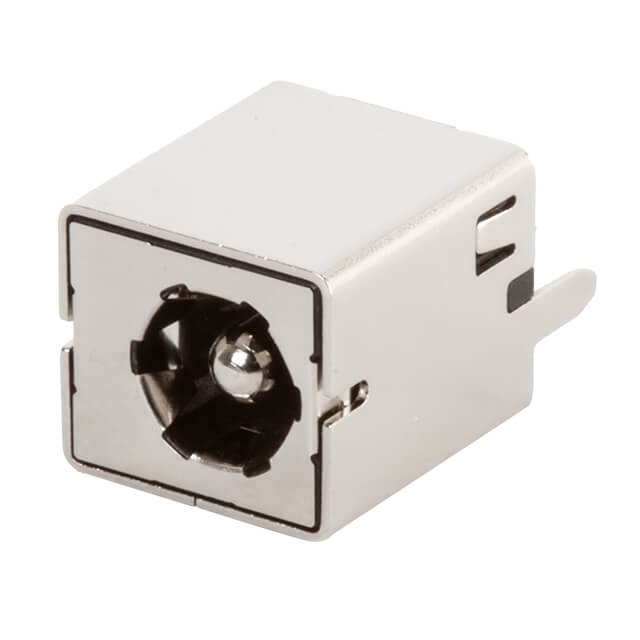

Same Sky (Formerly CUI Devices) PJ-110H
Images are for reference only
Manufacturer
Manufacturer No
PJ-110H
Packaging
Box
Description
1.65 X 6.0 MM, 5.0 A, VERTICAL,
Detailed Description
Power Barrel Connector Jack 1.65mm ID (0.065"), 5.50mm OD (0.217") Through Hole
Datasheet
Payment
Delivery
Gender
Male
Series
-
Features
Board Guide
Includes
-
Packaging
Box
Shielding
Shielded
Body Color
-
Termination
Solder
Thread Size
-
Manufacturer
Same Sky (Formerly CUI Devices)
Body Material
-
Mounting Type
Through Hole
Connector Type
Jack
Actual Diameter
0.065" (1.65mm ID), 0.236" (6.00mm OD)
Voltage - Rated
24VDC
Contact Material
Brass, Copper Alloy
Housing Material
Polyamide (PA10T), Nylon 10T
Insulation Color
Black
Mounting Feature
-
Ingress Protection
-
Internal Switch(s)
Single Switch
Mating Length/Depth
0.323" (8.20mm)
Current Rating (Amps)
5 A
Operating Temperature
-20°C ~ 70°C
Contact Material - Plating
Nickel, Tin
Material Flammability Rating
UL94 V-0
Number of Positions/Contacts
2 Conductors, 3 Contacts
Industry Recognized Mating Diameter
1.65mm ID (0.065"), 5.50mm OD (0.217")
| Attribute | Value |
|---|---|
| Gender | Male |
| Series | - |
| Features | Board Guide |
| Includes | - |
| Packaging | Box |
| Shielding | Shielded |
| Body Color | - |
| Termination | Solder |
| Thread Size | - |
| Manufacturer | Same Sky (Formerly CUI Devices) |
| Body Material | - |
| Mounting Type | Through Hole |
| Connector Type | Jack |
| Actual Diameter | 0.065" (1.65mm ID), 0.236" (6.00mm OD) |
| Voltage - Rated | 24VDC |
| Contact Material | Brass, Copper Alloy |
| Housing Material | Polyamide (PA10T), Nylon 10T |
| Insulation Color | Black |
| Mounting Feature | - |
| Ingress Protection | - |
| Internal Switch(s) | Single Switch |
| Mating Length/Depth | 0.323" (8.20mm) |
| Current Rating (Amps) | 5 A |
| Operating Temperature | -20°C ~ 70°C |
| Contact Material - Plating | Nickel, Tin |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Industry Recognized Mating Diameter | 1.65mm ID (0.065"), 5.50mm OD (0.217") |
