Step1: Product

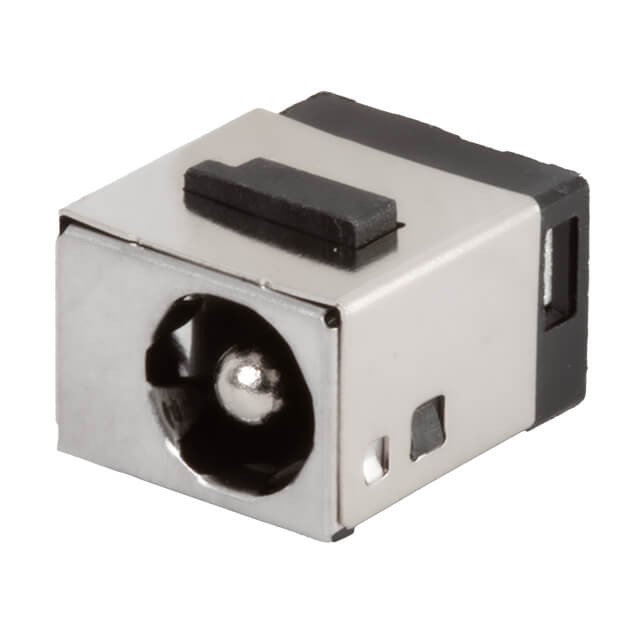

Same Sky (Formerly CUI Devices) PJ-108BH
Images are for reference only
Manufacturer
Manufacturer No
PJ-108BH
Packaging
Box
Description
2.5 X 5.9 MM, 5.0 A, VERTICAL, P
Detailed Description
Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Through Hole
Datasheet
Payment
Delivery
Gender
Male
Series
-
Features
-
Includes
-
Packaging
Box
Shielding
Shielded
Body Color
-
Termination
Solder
Thread Size
-
Manufacturer
Same Sky (Formerly CUI Devices)
Body Material
-
Mounting Type
Through Hole
Connector Type
Jack
Actual Diameter
0.098" (2.50mm ID), 0.232" (5.90mm OD)
Voltage - Rated
20VDC
Contact Material
Copper Alloy
Housing Material
Polybutylene Terephthalate (PBT)
Insulation Color
Black
Mounting Feature
-
Ingress Protection
-
Internal Switch(s)
Does Not Contain Switch
Mating Length/Depth
0.329" (8.35mm)
Current Rating (Amps)
5 A
Operating Temperature
-20°C ~ 70°C
Contact Material - Plating
Nickel, Silver
Material Flammability Rating
UL94 V-0
Number of Positions/Contacts
2 Conductors, 2 Contacts
Industry Recognized Mating Diameter
2.50mm ID (0.098"), 5.50mm OD (0.217")
| Attribute | Value |
|---|---|
| Gender | Male |
| Series | - |
| Features | - |
| Includes | - |
| Packaging | Box |
| Shielding | Shielded |
| Body Color | - |
| Termination | Solder |
| Thread Size | - |
| Manufacturer | Same Sky (Formerly CUI Devices) |
| Body Material | - |
| Mounting Type | Through Hole |
| Connector Type | Jack |
| Actual Diameter | 0.098" (2.50mm ID), 0.232" (5.90mm OD) |
| Voltage - Rated | 20VDC |
| Contact Material | Copper Alloy |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Insulation Color | Black |
| Mounting Feature | - |
| Ingress Protection | - |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | 0.329" (8.35mm) |
| Current Rating (Amps) | 5 A |
| Operating Temperature | -20°C ~ 70°C |
| Contact Material - Plating | Nickel, Silver |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") |
