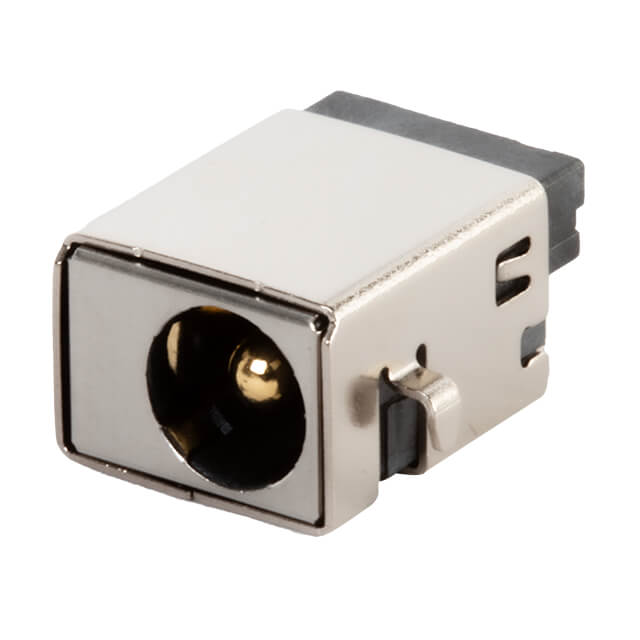

Same Sky (Formerly CUI Devices) PJ-105BH-MSMT-TR

Images are for reference only

Manufacturer

Same Sky (Formerly CUI Devices)

Manufacturer No

PJ-105BH-MSMT-TR

Packaging

Tape & Reel (TR); Cut Tape (CT)

Description

2.5 X 5.8 MM, 12 A, HORIZONTAL,

Detailed Description

Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Surface Mount, Right Angle

Datasheet

PJ-105BH-MSMT-TR

Payment

Delivery

Gender

Male

Series

-

Features

Solder Retention

Includes

-

Packaging

Tape & Reel (TR); Cut Tape (CT)

Shielding

Shielded

Body Color

-

Termination

Solder

Thread Size

-

Manufacturer

Same Sky (Formerly CUI Devices)

Body Material

-

Mounting Type

Surface Mount, Right Angle

Connector Type

Jack

Actual Diameter

0.098" (2.50mm ID), 0.228" (5.80mm OD)

Voltage - Rated

20VDC

Contact Material

Brass

Housing Material

Liquid Crystal Polymer (LCP)

Insulation Color

Black

Mounting Feature

-

Ingress Protection

-

Internal Switch(s)

Single Switch

Mating Length/Depth

0.323" (8.20mm)

Current Rating (Amps)

12 A

Operating Temperature

-20°C ~ 70°C

Contact Material - Plating

Gold

Material Flammability Rating

UL94 V-0

Number of Positions/Contacts

3 Conductors, 4 Contacts

Industry Recognized Mating Diameter

2.50mm ID (0.098"), 5.50mm OD (0.217")

Attribute	Value
Gender	Male
Series	-
Features	Solder Retention
Includes	-
Packaging	Tape & Reel (TR); Cut Tape (CT)
Shielding	Shielded
Body Color	-
Termination	Solder
Thread Size	-
Manufacturer	Same Sky (Formerly CUI Devices)
Body Material	-
Mounting Type	Surface Mount, Right Angle
Connector Type	Jack
Actual Diameter	0.098" (2.50mm ID), 0.228" (5.80mm OD)
Voltage - Rated	20VDC
Contact Material	Brass
Housing Material	Liquid Crystal Polymer (LCP)
Insulation Color	Black
Mounting Feature	-
Ingress Protection	-
Internal Switch(s)	Single Switch
Mating Length/Depth	0.323" (8.20mm)
Current Rating (Amps)	12 A
Operating Temperature	-20°C ~ 70°C
Contact Material - Plating	Gold
Material Flammability Rating	UL94 V-0
Number of Positions/Contacts	3 Conductors, 4 Contacts
Industry Recognized Mating Diameter	2.50mm ID (0.098"), 5.50mm OD (0.217")
