Step1: Product

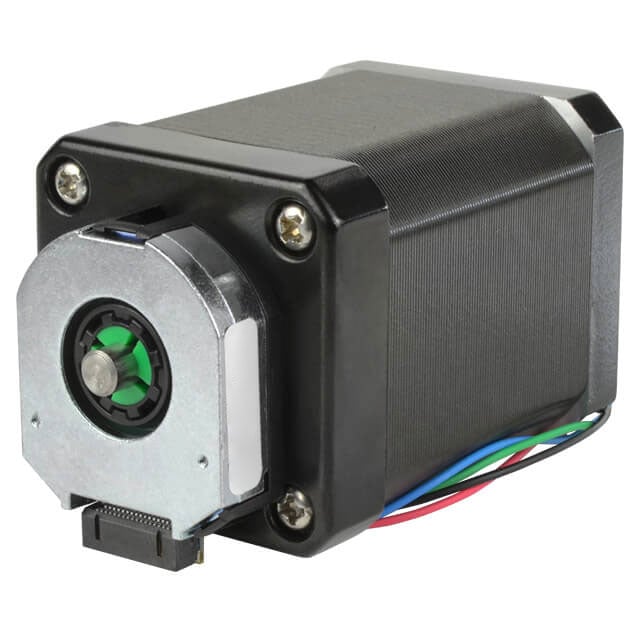

Same Sky (Formerly CUI Devices) NEMA17-16-06PD-AMT112S
Images are for reference only
Manufacturer
Manufacturer No
NEMA17-16-06PD-AMT112S
Packaging
Box
Description
STEPPER MOTOR W/ INCREMENTAL ENC
Detailed Description
Bipolar Stepper Motor Frame Size 17 200.0 Step 1.4 A 24 ~ 48VDC
Datasheet
Payment
Delivery
Mfr
Same Sky (Formerly CUI Devices)
Type
-
Series
NEMA17-AMT112S
Accuracy
±0.2%
Features
Integrated Encoder, Flatted Shaft
Coil Type
Bipolar
Packaging
Box
Step Angle
1.8°
Rotor Inertia
1.2gcm²
Approval Agency
CE
Coil Resistance
2.7 Ohms
NEMA Frame Size
17
Voltage - Rated
24 ~ 48VDC
Diameter - Shaft
0.197" (5.00mm)
Size / Dimension
Square - 1.669" x 1.669" (42.40mm x 42.40mm)
Termination Style
Connector
Base Product Number
NEMA17
Steps per Revolution
200.0
Current Rating (Amps)
1.4 A
Mounting Hole Spacing
1.220" (31.00mm)
Operating Temperature
-20°C ~ 50°C
Length - Shaft and Bearing
0.945" (24.00mm)
Torque - Holding (oz-in / mNm)
63 / 444.88
| Attribute | Value |
|---|---|
| Mfr | Same Sky (Formerly CUI Devices) |
| Type | - |
| Series | NEMA17-AMT112S |
| Accuracy | ±0.2% |
| Features | Integrated Encoder, Flatted Shaft |
| Coil Type | Bipolar |
| Packaging | Box |
| Step Angle | 1.8° |
| Rotor Inertia | 1.2gcm² |
| Approval Agency | CE |
| Coil Resistance | 2.7 Ohms |
| NEMA Frame Size | 17 |
| Voltage - Rated | 24 ~ 48VDC |
| Diameter - Shaft | 0.197" (5.00mm) |
| Size / Dimension | Square - 1.669" x 1.669" (42.40mm x 42.40mm) |
| Termination Style | Connector |
| Base Product Number | NEMA17 |
| Steps per Revolution | 200.0 |
| Current Rating (Amps) | 1.4 A |
| Mounting Hole Spacing | 1.220" (31.00mm) |
| Operating Temperature | -20°C ~ 50°C |
| Length - Shaft and Bearing | 0.945" (24.00mm) |
| Torque - Holding (oz-in / mNm) | 63 / 444.88 |
