Step1: Product

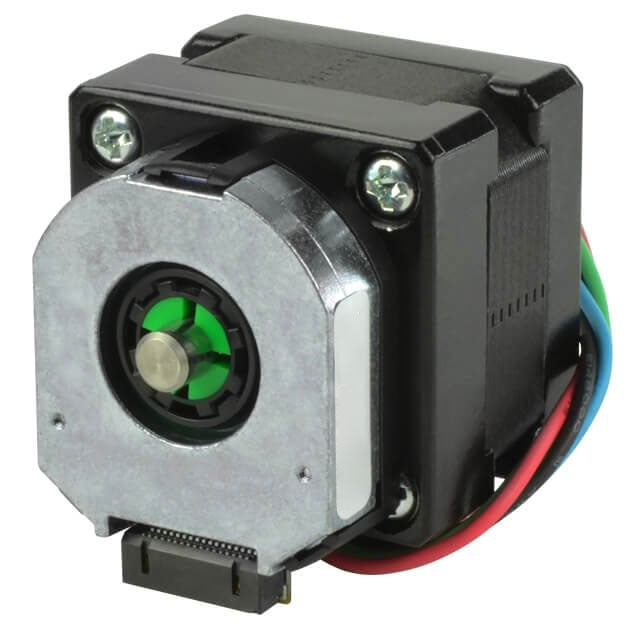

Same Sky (Formerly CUI Devices) NEMA14-10-08D-AMT112S
Images are for reference only
Manufacturer
Manufacturer No
NEMA14-10-08D-AMT112S
Packaging
Box
Description
STEPPER MOTOR W/ INCREMENTAL ENC
Detailed Description
Bipolar Stepper Motor Frame Size 14 200.0 Step 350 mA 24 ~ 48VDC
Datasheet
Payment
Delivery
Mfr
Same Sky (Formerly CUI Devices)
Type
-
Series
NEMA14-AMT112S
Accuracy
±0.2%
Features
Integrated Encoder
Coil Type
Bipolar
Packaging
Box
Step Angle
1.8°
Rotor Inertia
0.26gcm²
Approval Agency
CE
Coil Resistance
8.5 Ohms
NEMA Frame Size
14
Voltage - Rated
24 ~ 48VDC
Diameter - Shaft
0.197" (5.00mm)
Size / Dimension
Square - 1.390" x 1.390" (35.30mm x 35.30mm)
Termination Style
Connector
Base Product Number
NEMA14
Steps per Revolution
200.0
Current Rating (Amps)
350 mA
Mounting Hole Spacing
1.023" (26.00mm)
Operating Temperature
-20°C ~ 50°C
Length - Shaft and Bearing
0.602" (15.30mm)
Torque - Holding (oz-in / mNm)
7.5 / 52.96
| Attribute | Value |
|---|---|
| Mfr | Same Sky (Formerly CUI Devices) |
| Type | - |
| Series | NEMA14-AMT112S |
| Accuracy | ±0.2% |
| Features | Integrated Encoder |
| Coil Type | Bipolar |
| Packaging | Box |
| Step Angle | 1.8° |
| Rotor Inertia | 0.26gcm² |
| Approval Agency | CE |
| Coil Resistance | 8.5 Ohms |
| NEMA Frame Size | 14 |
| Voltage - Rated | 24 ~ 48VDC |
| Diameter - Shaft | 0.197" (5.00mm) |
| Size / Dimension | Square - 1.390" x 1.390" (35.30mm x 35.30mm) |
| Termination Style | Connector |
| Base Product Number | NEMA14 |
| Steps per Revolution | 200.0 |
| Current Rating (Amps) | 350 mA |
| Mounting Hole Spacing | 1.023" (26.00mm) |
| Operating Temperature | -20°C ~ 50°C |
| Length - Shaft and Bearing | 0.602" (15.30mm) |
| Torque - Holding (oz-in / mNm) | 7.5 / 52.96 |
