Step1: Product

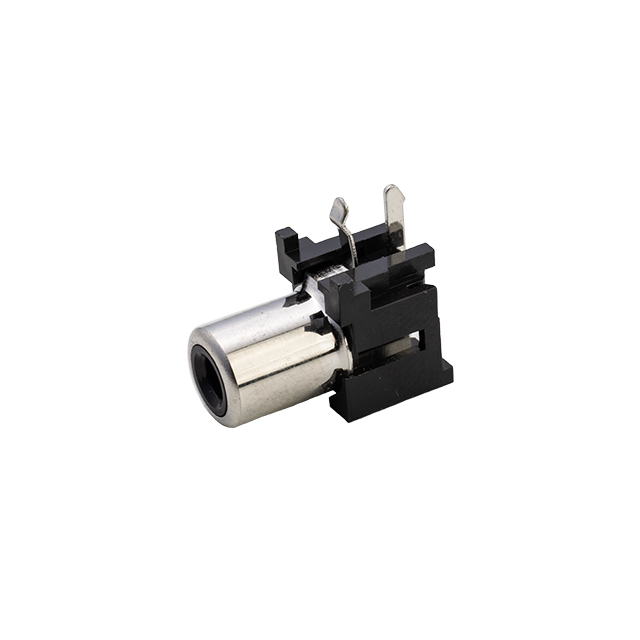

RDI, Inc. RH-1072-01-NL
Images are for reference only
Manufacturer
Manufacturer No
RH-1072-01-NL
Packaging
Bag
Description
RCA JACK
Detailed Description
3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Kinked Pin, Solder
Datasheet
Payment
Delivery
Mfr
RDI, Inc.
Gender
Female
Series
-
Features
Board Guide
Includes
-
Packaging
Bag
Shielding
Unshielded
Body Color
-
Termination
Kinked Pin, Solder
Thread Size
-
Signal Lines
Mono
Body Material
-
Cable Opening
-
Mounting Type
Through Hole, Right Angle
Connector Type
Phono (RCA) Jack
Actual Diameter
0.126" (3.20mm)
Panel Hole Size
-
Voltage - Rated
12V
Contact Material
-
Housing Material
Thermoplastic
Insulation Color
Black
Internal Switch(s)
Does Not Contain Switch
Mating Length/Depth
0.551" (14.00mm)
Operating Temperature
-
Contact Material - Plating
-
Number of Positions/Contacts
2 Conductors, 2 Contacts
Industry Recognized Mating Diameter
3.20mm ID, 9.00mm OD (RCA)
| Attribute | Value |
|---|---|
| Mfr | RDI, Inc. |
| Gender | Female |
| Series | - |
| Features | Board Guide |
| Includes | - |
| Packaging | Bag |
| Shielding | Unshielded |
| Body Color | - |
| Termination | Kinked Pin, Solder |
| Thread Size | - |
| Signal Lines | Mono |
| Body Material | - |
| Cable Opening | - |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Phono (RCA) Jack |
| Actual Diameter | 0.126" (3.20mm) |
| Panel Hole Size | - |
| Voltage - Rated | 12V |
| Contact Material | - |
| Housing Material | Thermoplastic |
| Insulation Color | Black |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | 0.551" (14.00mm) |
| Operating Temperature | - |
| Contact Material - Plating | - |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Industry Recognized Mating Diameter | 3.20mm ID, 9.00mm OD (RCA) |
