Step1: Product

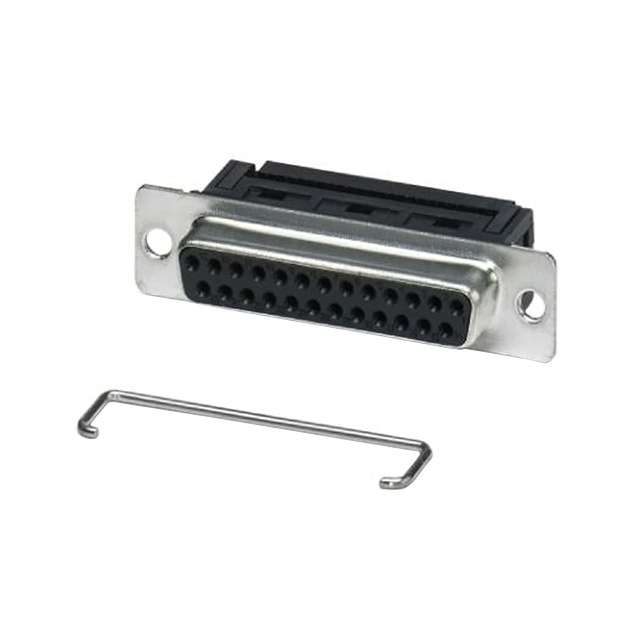

Phoenix Contact 1689925
Images are for reference only
Manufacturer
Manufacturer No
1689925
Availability
In Stock
Packaging
Bulk
Description
CONN D-SUB RCPT 25POS IDC
Detailed Description
25 Position D-Sub Receptacle, Female Sockets Connector
Datasheet
Payment
Delivery
Mfr
Phoenix Contact
Color
-
Series
-
Features
Feed Through, Strain Relief
Packaging
Bulk
Wire Gauge
-
Termination
IDC, Ribbon Cable
Contact Form
-
Contact Type
Signal
Mounting Type
Free Hanging (In-Line)
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Flange Feature
Housing/Shell (Unthreaded)
Number of Rows
2
Voltage Rating
125V
Backset Spacing
-
Connector Style
D-Sub
Contact Material
Copper Alloy
Ingress Protection
-
Dielectric Material
Polyester, Glass Filled
Number of Positions
25
Current Rating (Amps)
5A
Operating Temperature
-55°C ~ 105°C
Shell Material, Finish
Steel, Yellow Chromate Plated
Contact Finish Thickness
-
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
3 (DB, B)
| Attribute | Value |
|---|---|
| Mfr | Phoenix Contact |
| Color | - |
| Series | - |
| Features | Feed Through, Strain Relief |
| Packaging | Bulk |
| Wire Gauge | - |
| Termination | IDC, Ribbon Cable |
| Contact Form | - |
| Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) |
| Number of Rows | 2 |
| Voltage Rating | 125V |
| Backset Spacing | - |
| Connector Style | D-Sub |
| Contact Material | Copper Alloy |
| Ingress Protection | - |
| Dielectric Material | Polyester, Glass Filled |
| Number of Positions | 25 |
| Current Rating (Amps) | 5A |
| Operating Temperature | -55°C ~ 105°C |
| Shell Material, Finish | Steel, Yellow Chromate Plated |
| Contact Finish Thickness | - |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 3 (DB, B) |
