Step1: Product

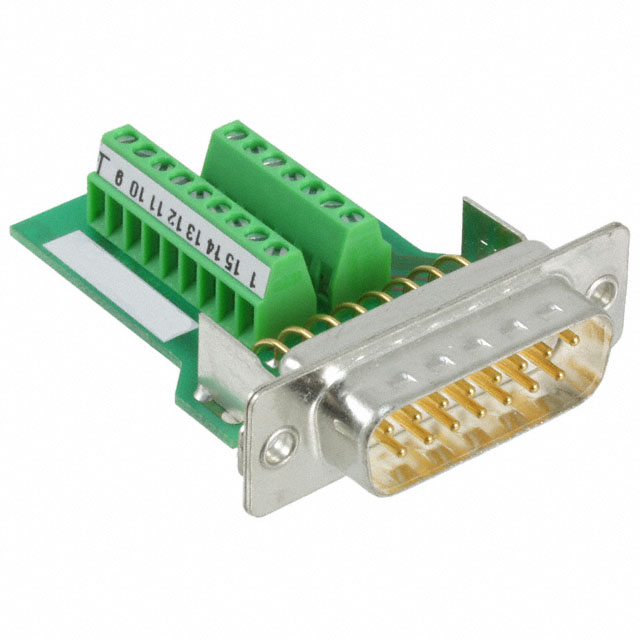

Phoenix Contact 1688078
Images are for reference only
Manufacturer
Manufacturer No
1688078
Quantity
10
Availability
In Stock
Packaging
Bulk
Description
CONN D-SUB PLUG 15POS TERM BLK
Detailed Description
15 Position D-Sub Plug, Male Pins Connector
Datasheet
Payment
Delivery
Mfr
Phoenix Contact
Color
-
Series
PLUSCON
Features
-
Packaging
Bulk
Wire Gauge
-
Termination
Terminal Block
Contact Form
-
Contact Type
Signal
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pins
Contact Finish
Gold
Flange Feature
Housing/Shell (Unthreaded)
Number of Rows
2
Voltage Rating
60V
Backset Spacing
-
Connector Style
D-Sub
Contact Material
Copper Alloy
Ingress Protection
IP20
Dielectric Material
Polybutylene Terephthalate (PBT), Polyester
Number of Positions
15
Current Rating (Amps)
5A
Operating Temperature
-20°C ~ 80°C
Shell Material, Finish
-
Contact Finish Thickness
-
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
2 (DA, A)
| Attribute | Value |
|---|---|
| Mfr | Phoenix Contact |
| Color | - |
| Series | PLUSCON |
| Features | - |
| Packaging | Bulk |
| Wire Gauge | - |
| Termination | Terminal Block |
| Contact Form | - |
| Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) |
| Number of Rows | 2 |
| Voltage Rating | 60V |
| Backset Spacing | - |
| Connector Style | D-Sub |
| Contact Material | Copper Alloy |
| Ingress Protection | IP20 |
| Dielectric Material | Polybutylene Terephthalate (PBT), Polyester |
| Number of Positions | 15 |
| Current Rating (Amps) | 5A |
| Operating Temperature | -20°C ~ 80°C |
| Shell Material, Finish | - |
| Contact Finish Thickness | - |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 2 (DA, A) |
