Step1: Product
Orion Fans OA225AP-22-1TB1869K

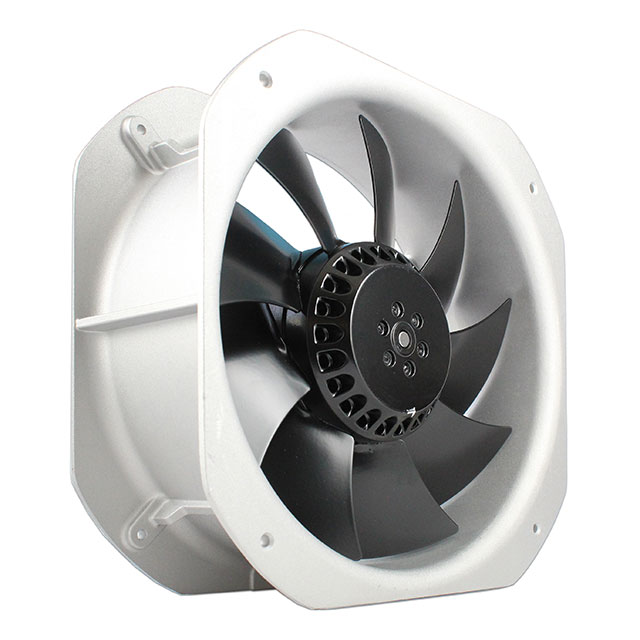

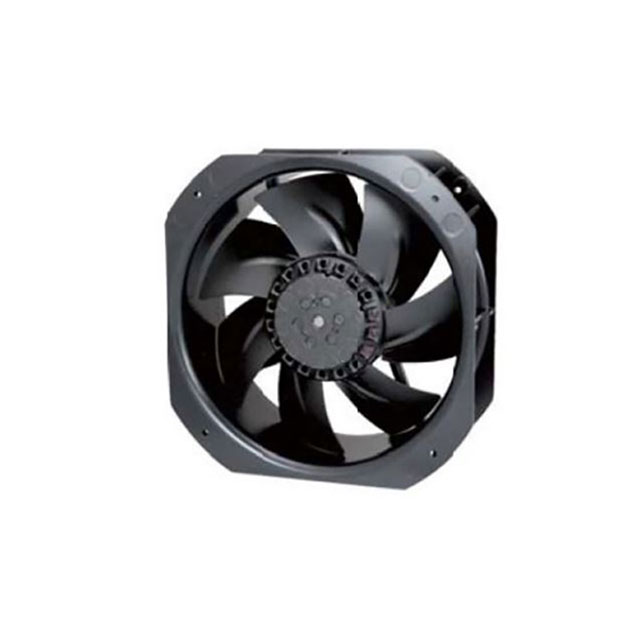

Images are for reference only
Manufacturer
Manufacturer No
OA225AP-22-1TB1869K
Packaging
Box
Description
AC FAN, IP69K, 225X225X80MM, 230
Detailed Description
Fan Tubeaxial 230VAC Square - 225mm L x 225mm H Ball 620.0 CFM (17.36m³/min) 2 Terminals
Datasheet
Payment
Delivery
RPM
3100 RPM
Noise
66.0dB
Width
80.00mm
Series
*
Weight
4.8 lbs (2.2 kg)
Air Flow
620.0 CFM (17.36m³/min)
Fan Type
Tubeaxial
Features
Capacitor, Thermal Overload Protector (TOP)
Packaging
Box
Termination
2 Terminals
Bearing Type
Ball
Manufacturer
Orion Fans
Power (Watts)
80.0W
Voltage Range
-
Approval Agency
CE, cURus, TUV, UR
Static Pressure
0.740 in H2O (184.3 Pa)
Voltage - Rated
230VAC
Lifetime @ Temp.
45000 Hrs @ 55°C
Material - Blade
Metal
Material - Frame
Aluminum
Size / Dimension
Square - 225mm L x 225mm H
Ingress Protection
IP69K - Dust Tight, Water Resistant, Waterproof
Base Product Number
OA225AP
Current Rating (Amps)
-
Operating Temperature
-22 ~ 176°F (-30 ~ 80°C)
| Attribute | Value |
|---|---|
| RPM | 3100 RPM |
| Noise | 66.0dB |
| Width | 80.00mm |
| Series | * |
| Weight | 4.8 lbs (2.2 kg) |
| Air Flow | 620.0 CFM (17.36m³/min) |
| Fan Type | Tubeaxial |
| Features | Capacitor, Thermal Overload Protector (TOP) |
| Packaging | Box |
| Termination | 2 Terminals |
| Bearing Type | Ball |
| Manufacturer | Orion Fans |
| Power (Watts) | 80.0W |
| Voltage Range | - |
| Approval Agency | CE, cURus, TUV, UR |
| Static Pressure | 0.740 in H2O (184.3 Pa) |
| Voltage - Rated | 230VAC |
| Lifetime @ Temp. | 45000 Hrs @ 55°C |
| Material - Blade | Metal |
| Material - Frame | Aluminum |
| Size / Dimension | Square - 225mm L x 225mm H |
| Ingress Protection | IP69K - Dust Tight, Water Resistant, Waterproof |
| Base Product Number | OA225AP |
| Current Rating (Amps) | - |
| Operating Temperature | -22 ~ 176°F (-30 ~ 80°C) |
