Step1: Product

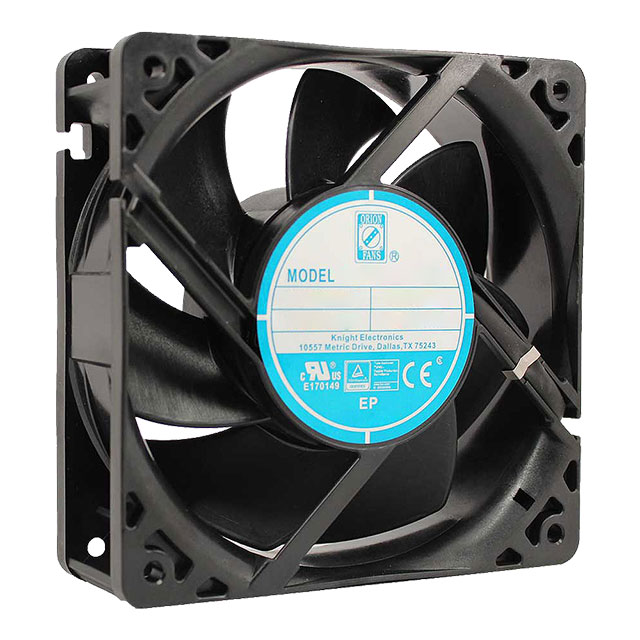

Orion Fans OA109EC-UR-1TB
Images are for reference only
Manufacturer
Manufacturer No
OA109EC-UR-1TB
Packaging
Box
Description
FAN EC 120X38MM 90-265VAC
Detailed Description
Fan Tubeaxial 115/230VAC Square - 120mm L x 120mm H Ball 106.0 CFM (2.97m³/min) 2 Terminals
Datasheet
Payment
Delivery
RPM
3200 RPM
Noise
43.0dB
Width
38.00mm
Series
OA109EC
Weight
0.64 lb (290.3 g)
Air Flow
106.0 CFM (2.97m³/min)
Fan Type
Tubeaxial
Features
Dual Voltage, Electronic Commutation (EC), Thermal Overload Protector (TOP)
Packaging
Box
Termination
2 Terminals
Bearing Type
Ball
Manufacturer
Orion Fans
Power (Watts)
4.90W, 5.20W
Voltage Range
90 ~ 265VAC
Approval Agency
CE, cURus, UR
Static Pressure
0.340 in H2O (84.7 Pa)
Voltage - Rated
115/230VAC
Lifetime @ Temp.
60000 Hrs @ 40°C
Material - Blade
Polybutylene Terephthalate (PBT)
Material - Frame
Polybutylene Terephthalate (PBT)
Size / Dimension
Square - 120mm L x 120mm H
Ingress Protection
-
Base Product Number
OA109EC
Current Rating (Amps)
0.060A/0.080A
Operating Temperature
-4 ~ 158°F (-20 ~ 70°C)
| Attribute | Value |
|---|---|
| RPM | 3200 RPM |
| Noise | 43.0dB |
| Width | 38.00mm |
| Series | OA109EC |
| Weight | 0.64 lb (290.3 g) |
| Air Flow | 106.0 CFM (2.97m³/min) |
| Fan Type | Tubeaxial |
| Features | Dual Voltage, Electronic Commutation (EC), Thermal Overload Protector (TOP) |
| Packaging | Box |
| Termination | 2 Terminals |
| Bearing Type | Ball |
| Manufacturer | Orion Fans |
| Power (Watts) | 4.90W, 5.20W |
| Voltage Range | 90 ~ 265VAC |
| Approval Agency | CE, cURus, UR |
| Static Pressure | 0.340 in H2O (84.7 Pa) |
| Voltage - Rated | 115/230VAC |
| Lifetime @ Temp. | 60000 Hrs @ 40°C |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Polybutylene Terephthalate (PBT) |
| Size / Dimension | Square - 120mm L x 120mm H |
| Ingress Protection | - |
| Base Product Number | OA109EC |
| Current Rating (Amps) | 0.060A/0.080A |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
