onsemi NCV7547MWTXG

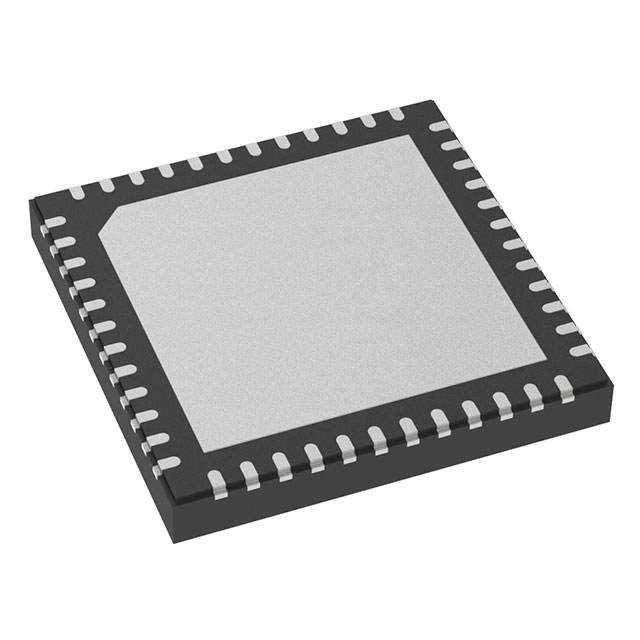

Images are for reference only
Manufacturer
Manufacturer No
NCV7547MWTXG
Quantity
5
Availability
In Stock
Package
48-VFQFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
IC HALF BRIDGE DRIVER 48QFNW
Detailed Description
Half Bridge (7) Driver General Purpose NMOS 48-QFNW (7x7)
Datasheet
Payment
Delivery
Grade
Automotive
Series
-
Features
Charge Pump
Interface
PWM, SPI
Load Type
Capacitive and Resistive
Packaging
Tape & Reel (TR); Cut Tape (CT)
Technology
NMOS
Applications
General Purpose
Manufacturer
onsemi
Rds On (Typ)
-
Mounting Type
Surface Mount, Wettable Flank
Qualification
AEC-Q100
Package / Case
48-VFQFN Exposed Pad
Voltage - Load
7V ~ 18V
Fault Protection
Over Load
Voltage - Supply
4.5V ~ 5.5V
Base Product Number
NCV7547
Output Configuration
Half Bridge (7)
Current - Peak Output
-
Operating Temperature
-40°C ~ 150°C (TJ)
Supplier Device Package
48-QFNW (7x7)
Current - Output / Channel
-
| Attribute | Value |
|---|---|
| Grade | Automotive |
| Series | - |
| Features | Charge Pump |
| Interface | PWM, SPI |
| Load Type | Capacitive and Resistive |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Technology | NMOS |
| Applications | General Purpose |
| Manufacturer | onsemi |
| Rds On (Typ) | - |
| Mounting Type | Surface Mount, Wettable Flank |
| Qualification | AEC-Q100 |
| Package / Case | 48-VFQFN Exposed Pad |
| Voltage - Load | 7V ~ 18V |
| Fault Protection | Over Load |
| Voltage - Supply | 4.5V ~ 5.5V |
| Base Product Number | NCV7547 |
| Output Configuration | Half Bridge (7) |
| Current - Peak Output | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | 48-QFNW (7x7) |
| Current - Output / Channel | - |
