Step1: Product

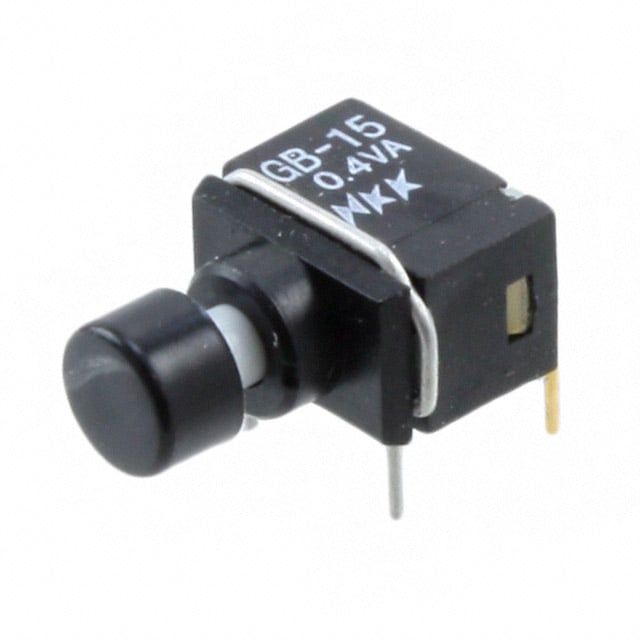

NKK Switches GB15AH-XA
Images are for reference only
Manufacturer
Manufacturer No
GB15AH-XA
Packaging
Tray
Description
SWITCH PUSH SPDT 0.4VA 28V
Detailed Description
Pushbutton Switch SPDT Standard Through Hole, Right Angle
Datasheet
Payment
Delivery
Mfr
NKK Switches
Type
Standard
Series
GB
Circuit
SPDT
Features
-
Packaging
Tray
Actuator Type
Round, Button
Mounting Type
Through Hole, Right Angle
Electrical Life
50,000 Cycles
Mechanical Life
50,000 Cycles
Switch Function
On-Mom
Actuator Marking
No Marking
Termination Style
PC Pin
Ingress Protection
-
Base Product Number
GB15AH
Voltage Rating - AC
28 V
Voltage Rating - DC
28 V
Color - Actuator/Cap
Black
Current Rating (Amps)
0.4VA (AC/DC)
Operating Temperature
-30°C ~ 85°C
Panel Cutout Dimensions
-
Illumination Type, Color
-
Illumination Voltage (Nominal)
-
| Attribute | Value |
|---|---|
| Mfr | NKK Switches |
| Type | Standard |
| Series | GB |
| Circuit | SPDT |
| Features | - |
| Packaging | Tray |
| Actuator Type | Round, Button |
| Mounting Type | Through Hole, Right Angle |
| Electrical Life | 50,000 Cycles |
| Mechanical Life | 50,000 Cycles |
| Switch Function | On-Mom |
| Actuator Marking | No Marking |
| Termination Style | PC Pin |
| Ingress Protection | - |
| Base Product Number | GB15AH |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 0.4VA (AC/DC) |
| Operating Temperature | -30°C ~ 85°C |
| Panel Cutout Dimensions | - |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
