Step1: Product

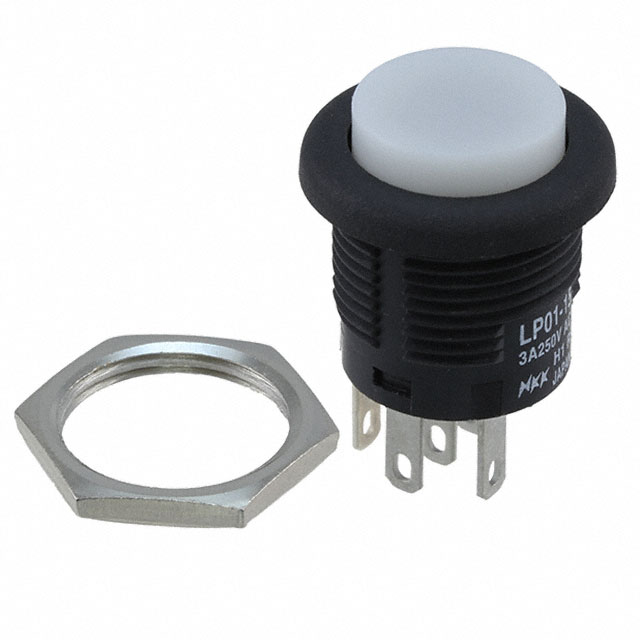

NKK Switches LP0115CCKW015FB
Images are for reference only
Manufacturer
Manufacturer No
LP0115CCKW015FB
Quantity
10
Availability
In Stock
Packaging
Bulk
Description
SWITCH PUSHBUTTON SPDT 3A 125V
Detailed Description
Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front
Datasheet
Payment
Delivery
Mfr
NKK Switches
Type
Standard, Illuminated
Series
LP01
Circuit
SPDT
Features
-
Packaging
Bulk
Actuator Type
Round, Button
Mounting Type
Panel Mount, Front
Electrical Life
50,000 Cycles
Mechanical Life
500,000 Cycles
Switch Function
On-Mom
Actuator Marking
No Marking
Termination Style
Solder, Quick Connect - 0.110" (2.8mm)
Ingress Protection
-
Base Product Number
LP0115C
Voltage Rating - AC
125 V
Voltage Rating - DC
30 V
Color - Actuator/Cap
White
Current Rating (Amps)
3A (AC/DC)
Operating Temperature
-10°C ~ 50°C
Panel Cutout Dimensions
Circular - 16.00mm Dia
Illumination Type, Color
LED, Green
Illumination Voltage (Nominal)
2.1 VDC
| Attribute | Value |
|---|---|
| Mfr | NKK Switches |
| Type | Standard, Illuminated |
| Series | LP01 |
| Circuit | SPDT |
| Features | - |
| Packaging | Bulk |
| Actuator Type | Round, Button |
| Mounting Type | Panel Mount, Front |
| Electrical Life | 50,000 Cycles |
| Mechanical Life | 500,000 Cycles |
| Switch Function | On-Mom |
| Actuator Marking | No Marking |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) |
| Ingress Protection | - |
| Base Product Number | LP0115C |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
| Color - Actuator/Cap | White |
| Current Rating (Amps) | 3A (AC/DC) |
| Operating Temperature | -10°C ~ 50°C |
| Panel Cutout Dimensions | Circular - 16.00mm Dia |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) | 2.1 VDC |
