Step1: Product
Nexperia USA Inc. PMDXB290UNEZ

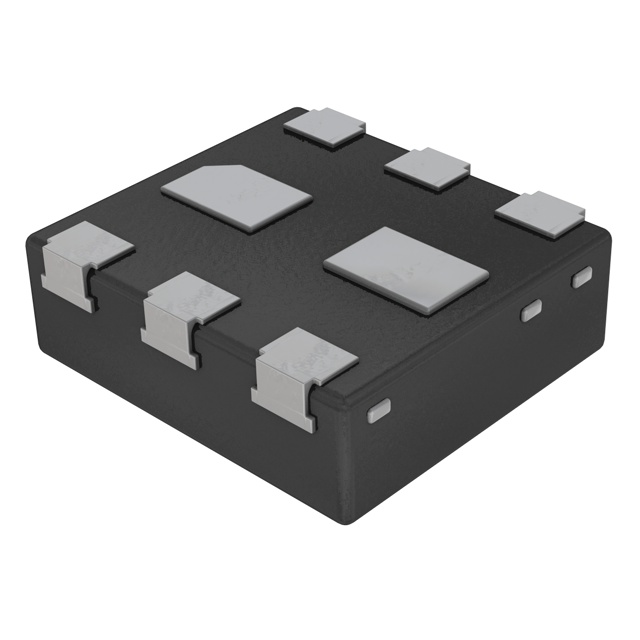

Images are for reference only
Manufacturer
Manufacturer No
PMDXB290UNEZ
Quantity
3,900
Availability
In Stock
Package
6-XFDFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
MOSFET 2N-CH 20V 0.93A 6DFN
Detailed Description
Mosfet Array 20V 930mA (Ta), 3.5A (Tc) 280mW (Ta), 6W (Tc) Surface Mount DFN1010B-6
Datasheet
Payment
Delivery
Series
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Technology
MOSFET (Metal Oxide)
FET Feature
-
Power - Max
280mW (Ta), 6W (Tc)
Manufacturer
Nexperia USA Inc.
Configuration
2 N-Channel (Dual)
Mounting Type
Surface Mount
Package / Case
6-XFDFN Exposed Pad
Vgs(th) (Max) @ Id
1V @ 250µA
Base Product Number
PMDXB290
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
320mOhm @ 1.2A, 4.5V
Supplier Device Package
DFN1010B-6
Gate Charge (Qg) (Max) @ Vgs
0.9nC @ 4.5V
Drain to Source Voltage (Vdss)
20V
Input Capacitance (Ciss) (Max) @ Vds
43.6pF @ 10V
Current - Continuous Drain (Id) @ 25°C
930mA (Ta), 3.5A (Tc)
| Attribute | Value |
|---|---|
| Series | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Power - Max | 280mW (Ta), 6W (Tc) |
| Manufacturer | Nexperia USA Inc. |
| Configuration | 2 N-Channel (Dual) |
| Mounting Type | Surface Mount |
| Package / Case | 6-XFDFN Exposed Pad |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Base Product Number | PMDXB290 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 320mOhm @ 1.2A, 4.5V |
| Supplier Device Package | DFN1010B-6 |
| Gate Charge (Qg) (Max) @ Vgs | 0.9nC @ 4.5V |
| Drain to Source Voltage (Vdss) | 20V |
| Input Capacitance (Ciss) (Max) @ Vds | 43.6pF @ 10V |
| Current - Continuous Drain (Id) @ 25°C | 930mA (Ta), 3.5A (Tc) |
