Step1: Product
Murata Power Solutions Inc. 1410524C

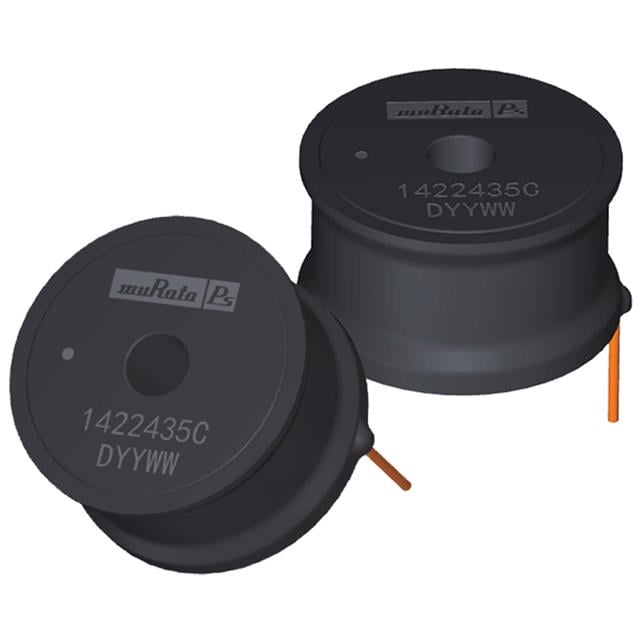

Images are for reference only
Manufacturer
Manufacturer No
1410524C
Quantity
24
Availability
In Stock
Package
Radial, Vertical Cylinder
Packaging
Bulk
Description
FIXED IND 1MH 2.4A 277 MOHM TH
Detailed Description
1 mH Unshielded Wirewound Inductor 2.4 A 277mOhm Max Radial, Vertical Cylinder
Datasheet
Payment
Delivery
Mfr
Murata Power Solutions Inc.
Type
Wirewound
Series
1400
Ratings
-
Q @ Freq
33 @ 50kHz
Packaging
Bulk
Shielding
Unshielded
Tolerance
±10%
Inductance
1 mH
Mounting Type
Through Hole
Package / Case
Radial, Vertical Cylinder
Material - Core
-
Size / Dimension
1.236" Dia (31.40mm)
Base Product Number
14
DC Resistance (DCR)
277mOhm Max
Current Rating (Amps)
2.4 A
Height - Seated (Max)
0.917" (23.30mm)
Operating Temperature
-40°C ~ 85°C
Supplier Device Package
-
Frequency - Self Resonant
1MHz
Current - Saturation (Isat)
-
Inductance Frequency - Test
1 kHz
| Attribute | Value |
|---|---|
| Mfr | Murata Power Solutions Inc. |
| Type | Wirewound |
| Series | 1400 |
| Ratings | - |
| Q @ Freq | 33 @ 50kHz |
| Packaging | Bulk |
| Shielding | Unshielded |
| Tolerance | ±10% |
| Inductance | 1 mH |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Material - Core | - |
| Size / Dimension | 1.236" Dia (31.40mm) |
| Base Product Number | 14 |
| DC Resistance (DCR) | 277mOhm Max |
| Current Rating (Amps) | 2.4 A |
| Height - Seated (Max) | 0.917" (23.30mm) |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | - |
| Frequency - Self Resonant | 1MHz |
| Current - Saturation (Isat) | - |
| Inductance Frequency - Test | 1 kHz |
