Step1: Product

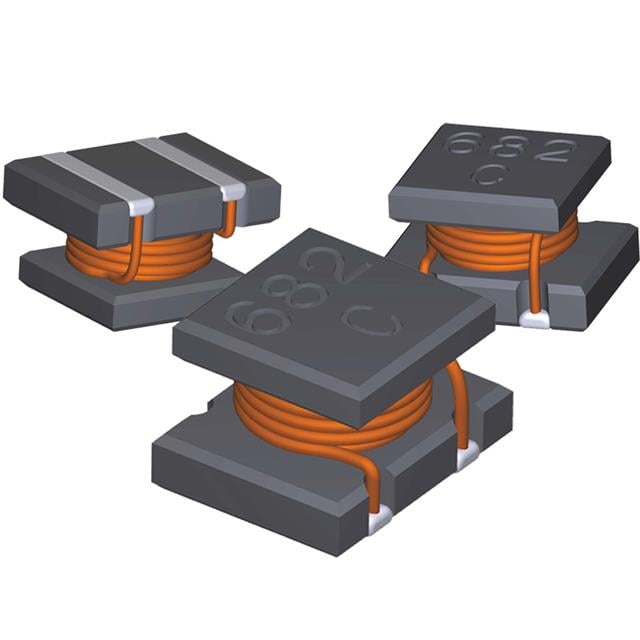

Murata Power Solutions Inc. 82103C
Images are for reference only
Manufacturer
Manufacturer No
82103C
Quantity
1,735
Availability
In Stock
Package
1210 (3225 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
FIXED IND 10UH 500MA 400 MOHM
Detailed Description
10 µH Unshielded Wirewound Inductor 500 mA 400mOhm Max 1210 (3225 Metric)
Datasheet
Payment
Delivery
Mfr
Murata Power Solutions Inc.
Type
Wirewound
Series
8200
Ratings
-
Q @ Freq
35 @ 1MHz
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shielding
Unshielded
Tolerance
±10%
Inductance
10 µH
Mounting Type
Surface Mount
Package / Case
1210 (3225 Metric)
Material - Core
-
Size / Dimension
0.126" L x 0.098" W (3.20mm x 2.50mm)
Base Product Number
82
DC Resistance (DCR)
400mOhm Max
Current Rating (Amps)
500 mA
Height - Seated (Max)
0.091" (2.30mm)
Operating Temperature
-40°C ~ 85°C
Supplier Device Package
1210
Frequency - Self Resonant
38MHz
Current - Saturation (Isat)
-
Inductance Frequency - Test
10 kHz
| Attribute | Value |
|---|---|
| Mfr | Murata Power Solutions Inc. |
| Type | Wirewound |
| Series | 8200 |
| Ratings | - |
| Q @ Freq | 35 @ 1MHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shielding | Unshielded |
| Tolerance | ±10% |
| Inductance | 10 µH |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Material - Core | - |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Base Product Number | 82 |
| DC Resistance (DCR) | 400mOhm Max |
| Current Rating (Amps) | 500 mA |
| Height - Seated (Max) | 0.091" (2.30mm) |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 1210 |
| Frequency - Self Resonant | 38MHz |
| Current - Saturation (Isat) | - |
| Inductance Frequency - Test | 10 kHz |
