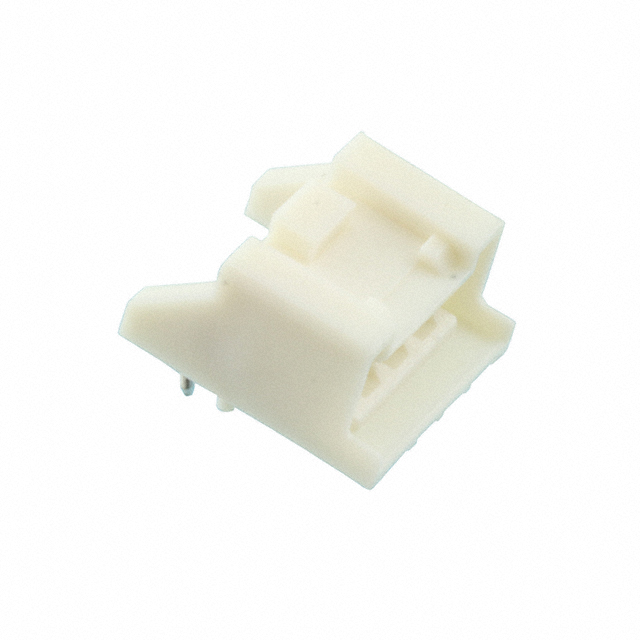

Molex 5036600400
Images are for reference only
Manufacturer
Manufacturer No
5036600400
Packaging
Tray
Description
CONN HEADER R/A 4POS 2MM
Detailed Description
Connector Header Through Hole, Right Angle 4 position 0.079" (2.00mm)
Datasheet
Payment
Delivery
Mfr
Molex
Style
Board to Cable/Wire
Series
Micro-Lock 503660
Features
Board Guide
Packaging
Tray
Shrouding
Shrouded - 4 Wall
Termination
Kinked Pin, Solder
Applications
-
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
1
Pitch - Mating
0.079" (2.00mm)
Voltage Rating
-
Contact Material
Brass
Insulation Color
Natural
Insulation Height
0.236" (6.00mm)
Ingress Protection
-
Base Product Number
503660
Insulation Material
Polybutylene Terephthalate (PBT), Glass Filled
Number of Positions
4
Row Spacing - Mating
-
Contact Finish - Post
Tin
Contact Length - Post
0.118" (3.00mm)
Current Rating (Amps)
-
Operating Temperature
-
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Tin
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Cable/Wire |
| Series | Micro-Lock 503660 |
| Features | Board Guide |
| Packaging | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Applications | - |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 1 |
| Pitch - Mating | 0.079" (2.00mm) |
| Voltage Rating | - |
| Contact Material | Brass |
| Insulation Color | Natural |
| Insulation Height | 0.236" (6.00mm) |
| Ingress Protection | - |
| Base Product Number | 503660 |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Number of Positions | 4 |
| Row Spacing - Mating | - |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.118" (3.00mm) |
| Current Rating (Amps) | - |
| Operating Temperature | - |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
