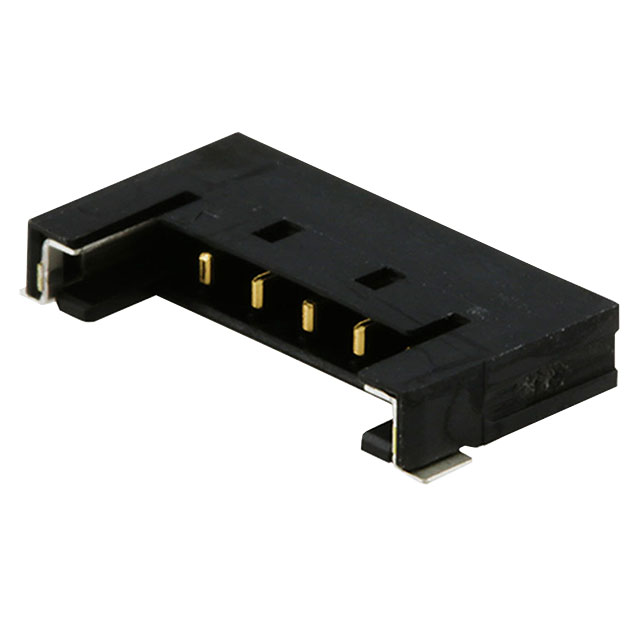

Molex 5040500591
Images are for reference only
Manufacturer
Manufacturer No
5040500591
Quantity
13,465
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN HEADER SMD R/A 5POS 1.5MM
Detailed Description
Connector Header Surface Mount, Right Angle 5 position 0.059" (1.50mm)
Datasheet
Payment
Delivery
Mfr
Molex
Style
Board to Cable/Wire
Series
Pico-Lock 504050
Features
Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
Automotive, General Purpose, Industrial, Lighting, Telecommunications
Contact Type
Male Blade
Contact Shape
Rectangular
Mounting Type
Surface Mount, Right Angle
Connector Type
Header
Fastening Type
Detent Lock
Number of Rows
1
Pitch - Mating
0.059" (1.50mm)
Voltage Rating
150V
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.079" (2.00mm)
Ingress Protection
-
Base Product Number
504050
Insulation Material
Polyamide (PA), Nylon
Number of Positions
5
Row Spacing - Mating
-
Contact Finish - Post
Gold
Contact Length - Post
-
Current Rating (Amps)
Varies by Wire Gauge
Operating Temperature
-40°C ~ 105°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Gold
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
3.94µin (0.100µm)
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Cable/Wire |
| Series | Pico-Lock 504050 |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Lighting, Telecommunications |
| Contact Type | Male Blade |
| Contact Shape | Rectangular |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Header |
| Fastening Type | Detent Lock |
| Number of Rows | 1 |
| Pitch - Mating | 0.059" (1.50mm) |
| Voltage Rating | 150V |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.079" (2.00mm) |
| Ingress Protection | - |
| Base Product Number | 504050 |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 5 |
| Row Spacing - Mating | - |
| Contact Finish - Post | Gold |
| Contact Length - Post | - |
| Current Rating (Amps) | Varies by Wire Gauge |
| Operating Temperature | -40°C ~ 105°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 3.94µin (0.100µm) |
