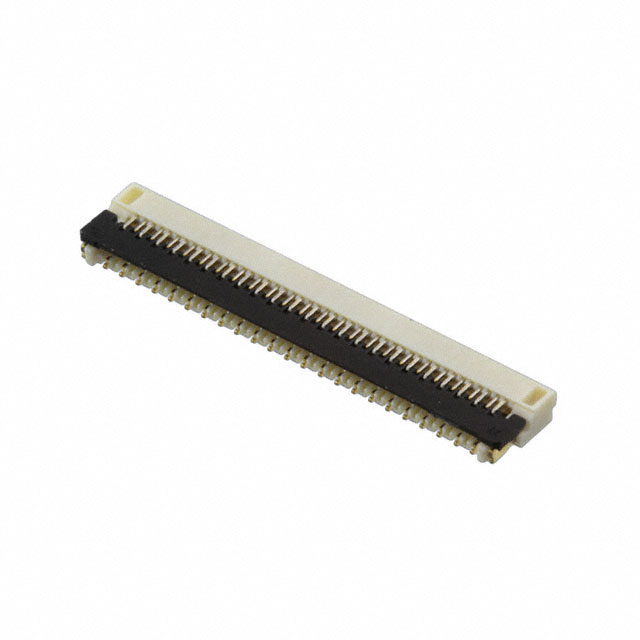

Molex 5035664500
Images are for reference only
Manufacturer
Manufacturer No
5035664500
Date Code
18+
Quantity
10
Availability
In Stock
Packaging
Tape & Reel (TR)
Description
CONN FPC BOTTOM 45POS 0.3MM R/A
Detailed Description
45 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Datasheet
Payment
Delivery
Pitch
0.012" (0.30mm)
Series
Easy-On 503566
Features
Solder Retention
Packaging
Tape & Reel (TR)
Termination
Solder
Manufacturer
Molex
Housing Color
White
Mating Cycles
10
Mounting Type
Surface Mount, Right Angle
Actuator Color
Black
Cable End Type
Tabbed
Contact Finish
Gold
Flat Flex Type
FPC
Voltage Rating
50V
Locking Feature
Flip Lock
Contact Material
Phosphor Bronze
Housing Material
Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material
Polyamide (PA), Nylon, Glass Filled
FFC, FCB Thickness
0.20mm
Height Above Board
0.037" (0.95mm)
Base Product Number
503566
Number of Positions
45
Current Rating (Amps)
0.2A
Operating Temperature
-40°C ~ 85°C
Connector/Contact Type
Contacts, Bottom
Contact Finish Thickness
-
Material Flammability Rating
UL94 V-0, UL94 HB
| Attribute | Value |
|---|---|
| Pitch | 0.012" (0.30mm) |
| Series | Easy-On 503566 |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR) |
| Termination | Solder |
| Manufacturer | Molex |
| Housing Color | White |
| Mating Cycles | 10 |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | Black |
| Cable End Type | Tabbed |
| Contact Finish | Gold |
| Flat Flex Type | FPC |
| Voltage Rating | 50V |
| Locking Feature | Flip Lock |
| Contact Material | Phosphor Bronze |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Actuator Material | Polyamide (PA), Nylon, Glass Filled |
| FFC, FCB Thickness | 0.20mm |
| Height Above Board | 0.037" (0.95mm) |
| Base Product Number | 503566 |
| Number of Positions | 45 |
| Current Rating (Amps) | 0.2A |
| Operating Temperature | -40°C ~ 85°C |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish Thickness | - |
| Material Flammability Rating | UL94 V-0, UL94 HB |
