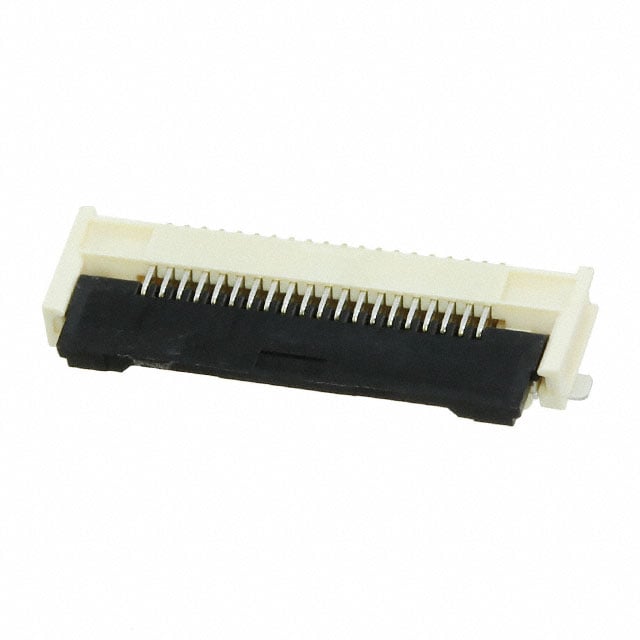

Molex 5051102091
Images are for reference only
Manufacturer
Manufacturer No
5051102091
Quantity
20,565
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN FFC BOTTOM 20POS 0.5MM R/A
Detailed Description
20 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
Payment
Delivery
Pitch
0.020" (0.50mm)
Series
Easy-On FD19 505110
Features
Solder Retention, Zero Insertion Force (ZIF)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Manufacturer
Molex
Housing Color
Beige
Mating Cycles
25
Mounting Type
Surface Mount, Right Angle
Actuator Color
Black
Cable End Type
Tabbed, Tapered
Contact Finish
Gold
Flat Flex Type
FFC, FPC
Voltage Rating
50V
Locking Feature
Flip Lock
Contact Material
Phosphor Bronze
Housing Material
Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material
Polyamide (PA), Nylon, Glass Filled
FFC, FCB Thickness
0.30mm
Height Above Board
0.075" (1.90mm)
Base Product Number
505110
Number of Positions
20
Current Rating (Amps)
0.5A
Operating Temperature
-40°C ~ 105°C
Connector/Contact Type
Contacts, Bottom
Contact Finish Thickness
1.97µin (0.050µm)
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.020" (0.50mm) |
| Series | Easy-On FD19 505110 |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Manufacturer | Molex |
| Housing Color | Beige |
| Mating Cycles | 25 |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | Black |
| Cable End Type | Tabbed, Tapered |
| Contact Finish | Gold |
| Flat Flex Type | FFC, FPC |
| Voltage Rating | 50V |
| Locking Feature | Flip Lock |
| Contact Material | Phosphor Bronze |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Actuator Material | Polyamide (PA), Nylon, Glass Filled |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.075" (1.90mm) |
| Base Product Number | 505110 |
| Number of Positions | 20 |
| Current Rating (Amps) | 0.5A |
| Operating Temperature | -40°C ~ 105°C |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish Thickness | 1.97µin (0.050µm) |
| Material Flammability Rating | UL94 V-0 |
