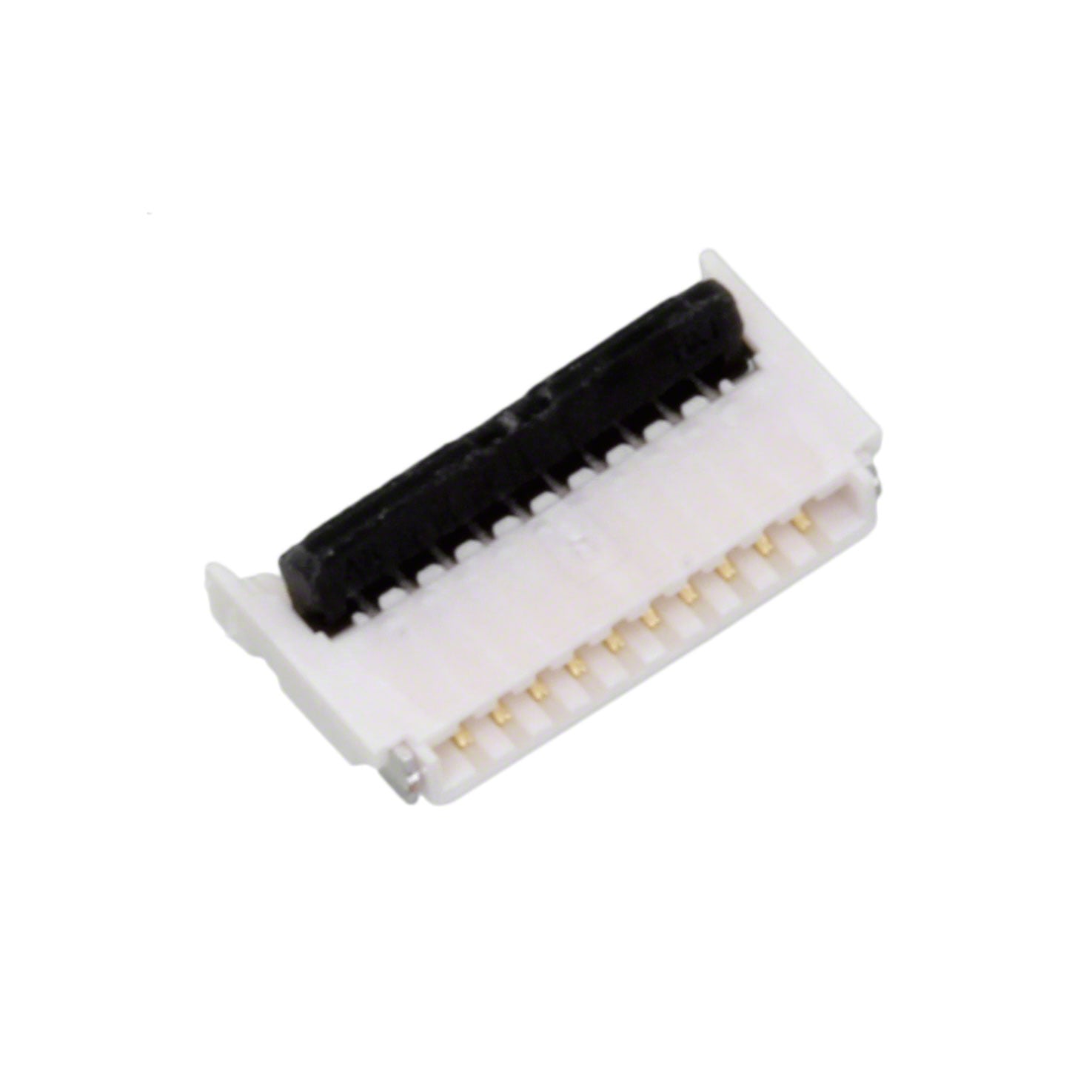

Molex 5034801000
Images are for reference only
Manufacturer
Manufacturer No
5034801000
Quantity
10,240
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN FFC FPC 10POS 0.5MM R/A
Detailed Description
10 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
Payment
Delivery
Pitch
0.020" (0.50mm)
Series
BackFlip, Easy-On 503480 FHB1
Features
Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Manufacturer
Molex
Housing Color
White
Mating Cycles
10
Mounting Type
Surface Mount, Right Angle
Actuator Color
Black
Cable End Type
Straight, Tapered
Contact Finish
Gold
Flat Flex Type
FFC, FPC
Voltage Rating
50V
Locking Feature
Flip Lock, Backlock
Contact Material
Phosphor Bronze
Housing Material
Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material
Polyamide (PA), Nylon, Glass Filled
FFC, FCB Thickness
0.30mm
Height Above Board
0.039" (1.00mm)
Base Product Number
503480
Number of Positions
10
Current Rating (Amps)
0.5A
Operating Temperature
-40°C ~ 85°C
Connector/Contact Type
Contacts, Top and Bottom
Contact Finish Thickness
3.94µin (0.10µm)
Material Flammability Rating
UL94 V-0, UL94 HB
| Attribute | Value |
|---|---|
| Pitch | 0.020" (0.50mm) |
| Series | BackFlip, Easy-On 503480 FHB1 |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Manufacturer | Molex |
| Housing Color | White |
| Mating Cycles | 10 |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | Black |
| Cable End Type | Straight, Tapered |
| Contact Finish | Gold |
| Flat Flex Type | FFC, FPC |
| Voltage Rating | 50V |
| Locking Feature | Flip Lock, Backlock |
| Contact Material | Phosphor Bronze |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Actuator Material | Polyamide (PA), Nylon, Glass Filled |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.039" (1.00mm) |
| Base Product Number | 503480 |
| Number of Positions | 10 |
| Current Rating (Amps) | 0.5A |
| Operating Temperature | -40°C ~ 85°C |
| Connector/Contact Type | Contacts, Top and Bottom |
| Contact Finish Thickness | 3.94µin (0.10µm) |
| Material Flammability Rating | UL94 V-0, UL94 HB |
