Step1: Product

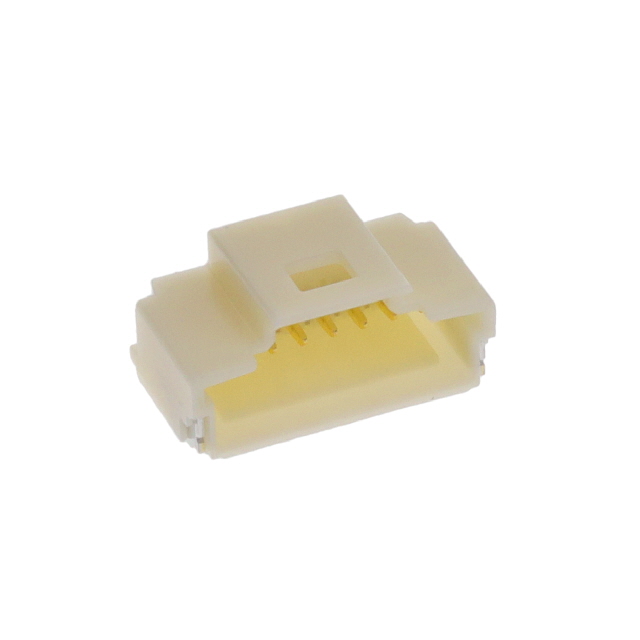

Molex 2023960807
Images are for reference only
Manufacturer
Manufacturer No
2023960807
Quantity
7,161
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN HEADER SMD R/A 8POS 1MM
Detailed Description
Connector Header Surface Mount, Right Angle 8 position 0.039" (1.00mm)
Datasheet
Payment
Delivery
Mfr
Molex
Style
Board to Cable/Wire
Series
Pico-Clasp 202396
Features
Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
Automotive, General Purpose, Industrial, Medical
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount, Right Angle
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
1
Pitch - Mating
0.039" (1.00mm)
Voltage Rating
50V
Contact Material
Phosphor Bronze
Insulation Color
Natural
Insulation Height
0.185" (4.70mm)
Ingress Protection
-
Base Product Number
202396
Insulation Material
Polyamide (PA), Nylon
Number of Positions
8
Row Spacing - Mating
-
Contact Finish - Post
Gold
Contact Length - Post
-
Current Rating (Amps)
Varies by Wire Gauge
Operating Temperature
-40°C ~ 105°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Gold
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
39.4µin (1.00µm)
Contact Finish Thickness - Mating
3.90µin (0.099µm)
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Cable/Wire |
| Series | Pico-Clasp 202396 |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 1 |
| Pitch - Mating | 0.039" (1.00mm) |
| Voltage Rating | 50V |
| Contact Material | Phosphor Bronze |
| Insulation Color | Natural |
| Insulation Height | 0.185" (4.70mm) |
| Ingress Protection | - |
| Base Product Number | 202396 |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 8 |
| Row Spacing - Mating | - |
| Contact Finish - Post | Gold |
| Contact Length - Post | - |
| Current Rating (Amps) | Varies by Wire Gauge |
| Operating Temperature | -40°C ~ 105°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | 3.90µin (0.099µm) |
