Step1: Product

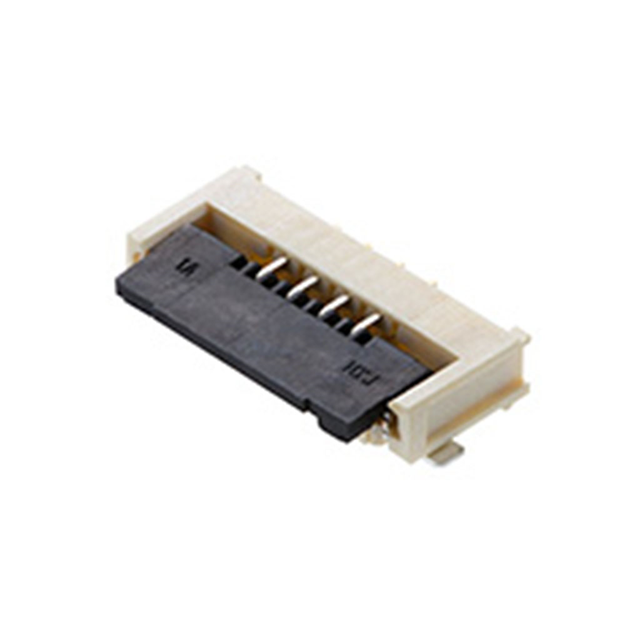

Molex 2005280051
Images are for reference only
Manufacturer
Manufacturer No
2005280051
Quantity
766
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN FFC FPC BOTTOM 5POS 1MM R/A
Detailed Description
5 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle
Datasheet
Payment
Delivery
Pitch
0.039" (1.00mm)
Series
Easy-On 200528
Features
Solder Retention, Zero Insertion Force (ZIF)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Manufacturer
Molex
Housing Color
Beige
Mating Cycles
20
Mounting Type
Surface Mount, Right Angle
Actuator Color
Black
Cable End Type
Straight, Tabbed
Contact Finish
Gold
Flat Flex Type
FFC, FPC
Voltage Rating
125V
Locking Feature
Flip Lock
Contact Material
Copper Alloy
Housing Material
Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material
Liquid Crystal Polymer (LCP), Glass Filled
FFC, FCB Thickness
0.30mm
Height Above Board
0.075" (1.90mm)
Base Product Number
200528
Number of Positions
5
Current Rating (Amps)
1A
Operating Temperature
-40°C ~ 150°C
Connector/Contact Type
Contacts, Bottom
Contact Finish Thickness
1.97µin (0.050µm)
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.039" (1.00mm) |
| Series | Easy-On 200528 |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Manufacturer | Molex |
| Housing Color | Beige |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | Black |
| Cable End Type | Straight, Tabbed |
| Contact Finish | Gold |
| Flat Flex Type | FFC, FPC |
| Voltage Rating | 125V |
| Locking Feature | Flip Lock |
| Contact Material | Copper Alloy |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Actuator Material | Liquid Crystal Polymer (LCP), Glass Filled |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.075" (1.90mm) |
| Base Product Number | 200528 |
| Number of Positions | 5 |
| Current Rating (Amps) | 1A |
| Operating Temperature | -40°C ~ 150°C |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish Thickness | 1.97µin (0.050µm) |
| Material Flammability Rating | UL94 V-0 |
