Step1: Product

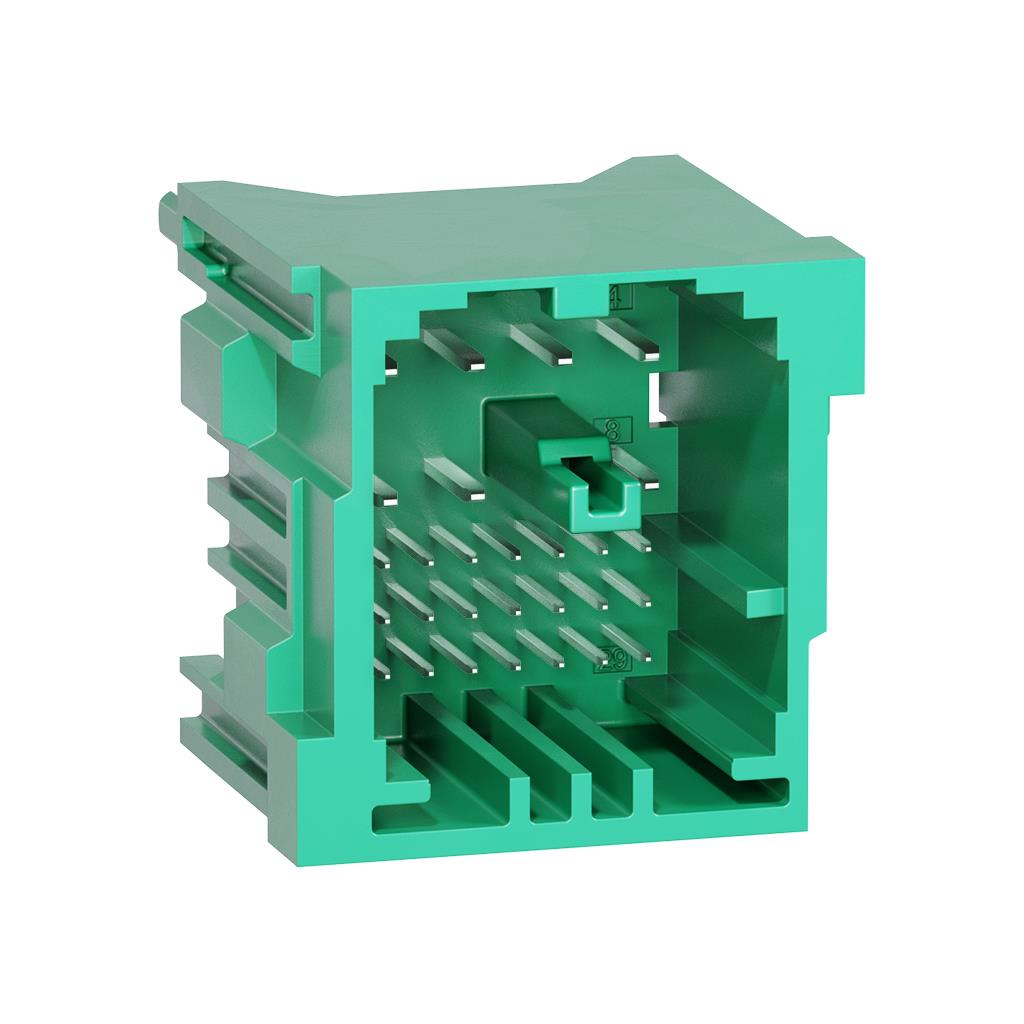

Molex 2005010282
Images are for reference only
Manufacturer
Manufacturer No
2005010282
Quantity
20
Availability
In Stock
Packaging
Tube
Description
STAK50 ASSY VHDR SOLDER 28CKT KE
Detailed Description
Connector Header Through Hole 28 position
Datasheet
Payment
Delivery
Mfr
Molex
Style
Board to Cable/Wire
Series
stAK50h 200501
Features
-
Packaging
Tube
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
-
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
5
Pitch - Mating
-
Voltage Rating
500V
Contact Material
Copper Alloy
Insulation Color
Green
Insulation Height
0.949" (24.10mm)
Ingress Protection
-
Base Product Number
200501
Insulation Material
Syndiotactic Polystyrene (SPS)
Number of Positions
28
Row Spacing - Mating
-
Contact Finish - Post
Tin
Contact Length - Post
0.102" (2.60mm)
Current Rating (Amps)
5A
Operating Temperature
-40°C ~ 85°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Tin
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Cable/Wire |
| Series | stAK50h 200501 |
| Features | - |
| Packaging | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | - |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 5 |
| Pitch - Mating | - |
| Voltage Rating | 500V |
| Contact Material | Copper Alloy |
| Insulation Color | Green |
| Insulation Height | 0.949" (24.10mm) |
| Ingress Protection | - |
| Base Product Number | 200501 |
| Insulation Material | Syndiotactic Polystyrene (SPS) |
| Number of Positions | 28 |
| Row Spacing - Mating | - |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.102" (2.60mm) |
| Current Rating (Amps) | 5A |
| Operating Temperature | -40°C ~ 85°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
