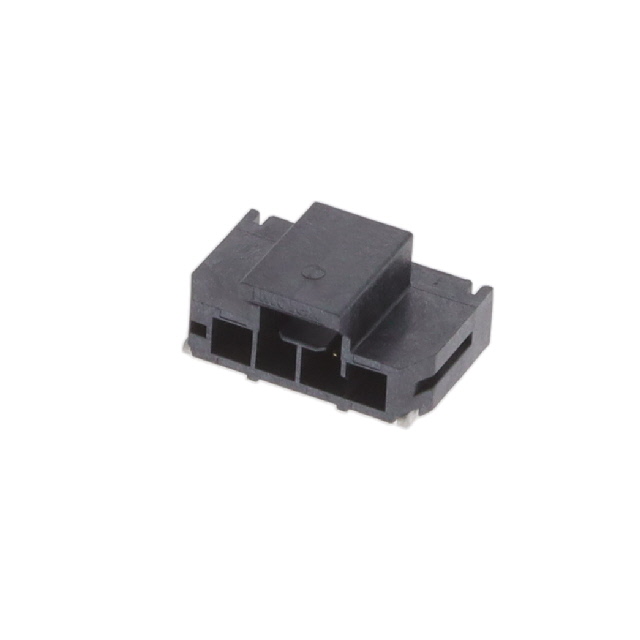

Molex 1054301204
Images are for reference only
Manufacturer
Manufacturer No
1054301204
Quantity
21
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN HEADER SMD R/A 4POS 2.5MM
Detailed Description
Connector Header Surface Mount, Right Angle 4 position 0.098" (2.50mm)
Datasheet
Payment
Delivery
Mfr
Molex
Style
Board to Cable/Wire
Series
Nano-Fit 105430
Features
Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount, Right Angle
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
1
Pitch - Mating
0.098" (2.50mm)
Voltage Rating
250VAC
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.275" (6.99mm)
Ingress Protection
-
Base Product Number
105430
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
4
Row Spacing - Mating
-
Contact Finish - Post
Tin
Contact Length - Post
-
Current Rating (Amps)
Varies by Wire Gauge
Operating Temperature
-40°C ~ 115°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Gold
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
30.0µin (0.76µm)
Contact Finish Thickness - Mating
15.0µin (0.38µm)
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Cable/Wire |
| Series | Nano-Fit 105430 |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Military, Telecommunications |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 1 |
| Pitch - Mating | 0.098" (2.50mm) |
| Voltage Rating | 250VAC |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.275" (6.99mm) |
| Ingress Protection | - |
| Base Product Number | 105430 |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 4 |
| Row Spacing - Mating | - |
| Contact Finish - Post | Tin |
| Contact Length - Post | - |
| Current Rating (Amps) | Varies by Wire Gauge |
| Operating Temperature | -40°C ~ 115°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 30.0µin (0.76µm) |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
