Step1: Product

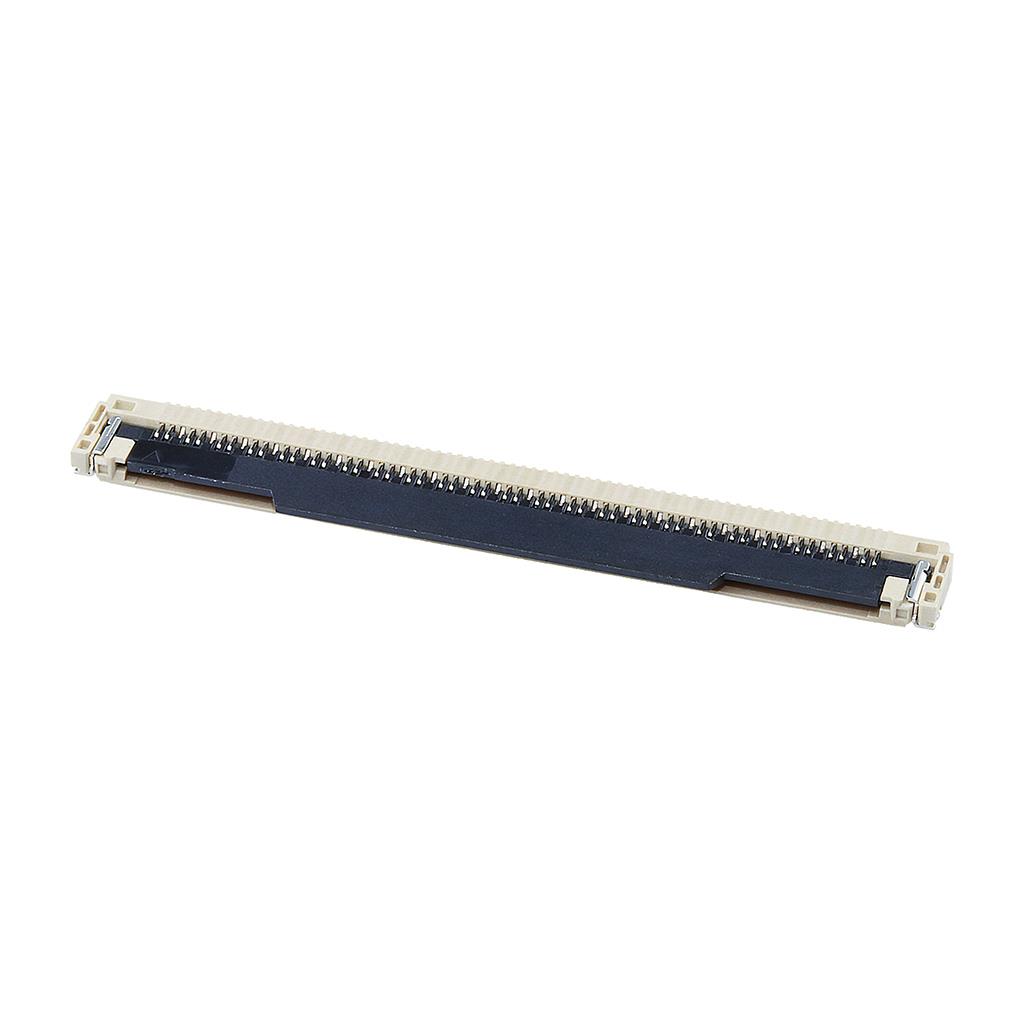

Molex 1042676817
Images are for reference only
Manufacturer
Manufacturer No
1042676817
Packaging
Bulk
Description
0.5 FFC NEW WIDE SLIM CONN. 68P
Detailed Description
68 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
Payment
Delivery
Pitch
0.020" (0.50mm)
Series
Easy-On 104267
Features
Solder Retention
Packaging
Bulk
Termination
Solder
Manufacturer
Molex
Housing Color
Natural
Mating Cycles
20
Mounting Type
Surface Mount, Right Angle
Actuator Color
Black
Cable End Type
Tapered
Contact Finish
Gold
Flat Flex Type
FFC, FPC
Voltage Rating
50V
Locking Feature
Flip Lock
Contact Material
Phosphor Bronze
Housing Material
Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material
Polyphenylene Sulfide (PPS), Glass Filled
FFC, FCB Thickness
0.30mm
Height Above Board
0.059" (1.50mm)
Base Product Number
104267
Number of Positions
68
Current Rating (Amps)
0.5A
Operating Temperature
-20°C ~ 105°C
Connector/Contact Type
Contacts, Bottom
Contact Finish Thickness
3.94µin (0.10µm)
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.020" (0.50mm) |
| Series | Easy-On 104267 |
| Features | Solder Retention |
| Packaging | Bulk |
| Termination | Solder |
| Manufacturer | Molex |
| Housing Color | Natural |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | Black |
| Cable End Type | Tapered |
| Contact Finish | Gold |
| Flat Flex Type | FFC, FPC |
| Voltage Rating | 50V |
| Locking Feature | Flip Lock |
| Contact Material | Phosphor Bronze |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.059" (1.50mm) |
| Base Product Number | 104267 |
| Number of Positions | 68 |
| Current Rating (Amps) | 0.5A |
| Operating Temperature | -20°C ~ 105°C |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish Thickness | 3.94µin (0.10µm) |
| Material Flammability Rating | UL94 V-0 |
