Step1: Product

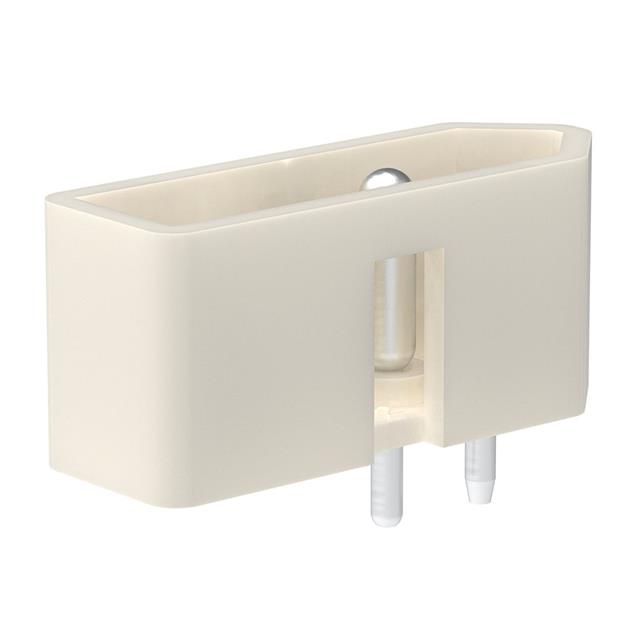

Molex 10181040
Mfr
Molex
Style
Board to Board or Cable
Series
3099
Features
Board Guide
Packaging
Box
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
General Purpose, Telecommunications
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Latch Lock
Number of Rows
1
Pitch - Mating
0.198" (5.03mm)
Voltage Rating
250V
Contact Material
Cartridge Brass
Insulation Color
Black
Insulation Height
0.420" (10.67mm)
Ingress Protection
-
Insulation Material
Polyester
Number of Positions
4
Row Spacing - Mating
-
Contact Finish - Post
Tin
Contact Length - Post
0.170" (4.32mm)
Current Rating (Amps)
5A per Contact
Operating Temperature
-40°C ~ 105°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Tin
Contact Length - Mating
-
Number of Positions Loaded
2
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
200.0µin (5.08µm)
Contact Finish Thickness - Mating
200.0µin (5.08µm)
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Board or Cable |
| Series | 3099 |
| Features | Board Guide |
| Packaging | Box |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Telecommunications |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Latch Lock |
| Number of Rows | 1 |
| Pitch - Mating | 0.198" (5.03mm) |
| Voltage Rating | 250V |
| Contact Material | Cartridge Brass |
| Insulation Color | Black |
| Insulation Height | 0.420" (10.67mm) |
| Ingress Protection | - |
| Insulation Material | Polyester |
| Number of Positions | 4 |
| Row Spacing - Mating | - |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.170" (4.32mm) |
| Current Rating (Amps) | 5A per Contact |
| Operating Temperature | -40°C ~ 105°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | - |
| Number of Positions Loaded | 2 |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating | 200.0µin (5.08µm) |
