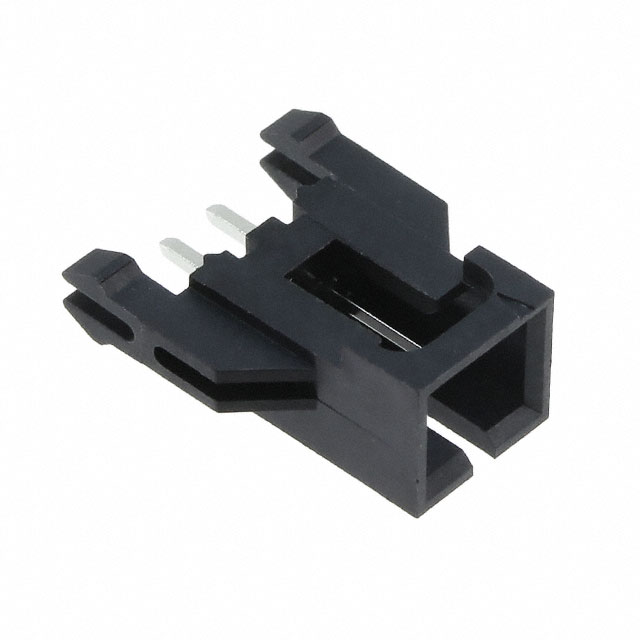

Molex 0705410001
Images are for reference only
Manufacturer
Manufacturer No
0705410001
Quantity
15
Availability
In Stock
Packaging
Bulk
Description
CONN HEADER VERT 2POS 2.54MM
Detailed Description
Connector Header Through Hole 2 position 0.100" (2.54mm)
Datasheet
Payment
Delivery
Mfr
Molex
Style
Board to Cable/Wire
Series
SL 70541
Features
Board Lock
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
Automotive, General Purpose, Industrial, Medical
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
1
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
250V
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.465" (11.80mm)
Ingress Protection
-
Base Product Number
070541
Insulation Material
Polyester, Glass Filled
Number of Positions
2
Row Spacing - Mating
-
Contact Finish - Post
Tin
Contact Length - Post
0.130" (3.30mm)
Current Rating (Amps)
3A
Operating Temperature
-40°C ~ 105°C
Mated Stacking Heights
-
Overall Contact Length
0.470" (11.94mm)
Contact Finish - Mating
Tin
Contact Length - Mating
0.240" (6.10mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
150.0µin (3.81µm)
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Cable/Wire |
| Series | SL 70541 |
| Features | Board Lock |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 1 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | 250V |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.465" (11.80mm) |
| Ingress Protection | - |
| Base Product Number | 070541 |
| Insulation Material | Polyester, Glass Filled |
| Number of Positions | 2 |
| Row Spacing - Mating | - |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.130" (3.30mm) |
| Current Rating (Amps) | 3A |
| Operating Temperature | -40°C ~ 105°C |
| Mated Stacking Heights | - |
| Overall Contact Length | 0.470" (11.94mm) |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.240" (6.10mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
