Step1: Product

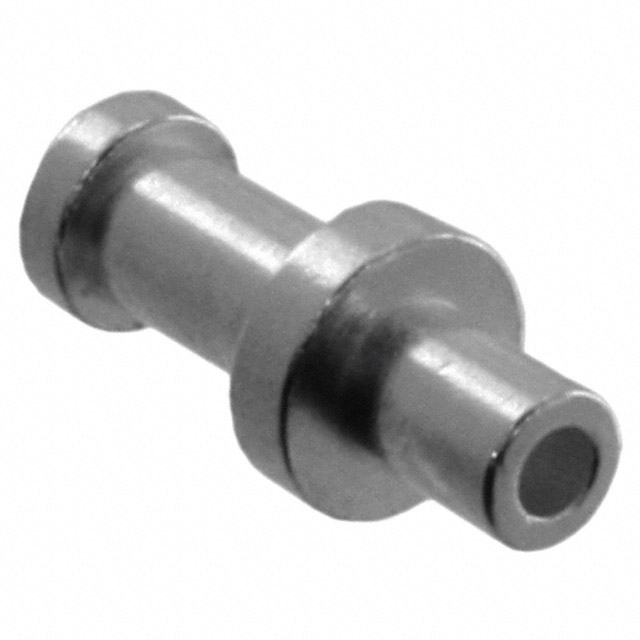

Mill-Max Manufacturing Corp. 2505-2-00-44-00-00-07-0
Images are for reference only
Manufacturer
Manufacturer No
2505-2-00-44-00-00-07-0
Availability
In Stock
Packaging
Bulk
Description
TERM TURRET SINGLE L=4.75MM
Detailed Description
Terminal Turret Connector Single End 0.187" (4.75mm) Silver
Datasheet
Payment
Delivery
Series
2505
Packaging
Bulk
Insulation
Non-Insulated
Termination
Swage
Manufacturer
Mill-Max Manufacturing Corp.
Mounting Type
Through Hole
Terminal Type
Single End
Contact Finish
Silver
Board Thickness
0.062" (1.57mm)
Flange Diameter
0.125" (3.18mm)
Staking Side ID
0.043" (1.09mm)
Staking Side OD
0.071" (1.80mm)
Contact Material
Brass Alloy
Insulation Color
-
Length - Overall
0.280" (7.11mm)
Number of Turrets
Single
Base Product Number
2505-2
Length - Above Board
0.187" (4.75mm)
Length - Below Flange
0.093" (2.36mm)
Material - Insulation
-
Diameter - Turret Head
0.097" (2.46mm)
Mounting Hole Diameter
0.076" (1.93mm)
Contact Finish Thickness
300.0µin (7.62µm)
| Attribute | Value |
|---|---|
| Series | 2505 |
| Packaging | Bulk |
| Insulation | Non-Insulated |
| Termination | Swage |
| Manufacturer | Mill-Max Manufacturing Corp. |
| Mounting Type | Through Hole |
| Terminal Type | Single End |
| Contact Finish | Silver |
| Board Thickness | 0.062" (1.57mm) |
| Flange Diameter | 0.125" (3.18mm) |
| Staking Side ID | 0.043" (1.09mm) |
| Staking Side OD | 0.071" (1.80mm) |
| Contact Material | Brass Alloy |
| Insulation Color | - |
| Length - Overall | 0.280" (7.11mm) |
| Number of Turrets | Single |
| Base Product Number | 2505-2 |
| Length - Above Board | 0.187" (4.75mm) |
| Length - Below Flange | 0.093" (2.36mm) |
| Material - Insulation | - |
| Diameter - Turret Head | 0.097" (2.46mm) |
| Mounting Hole Diameter | 0.076" (1.93mm) |
| Contact Finish Thickness | 300.0µin (7.62µm) |
