Mill-Max Manufacturing Corp. 1092-0-05-21-00-00-01-0

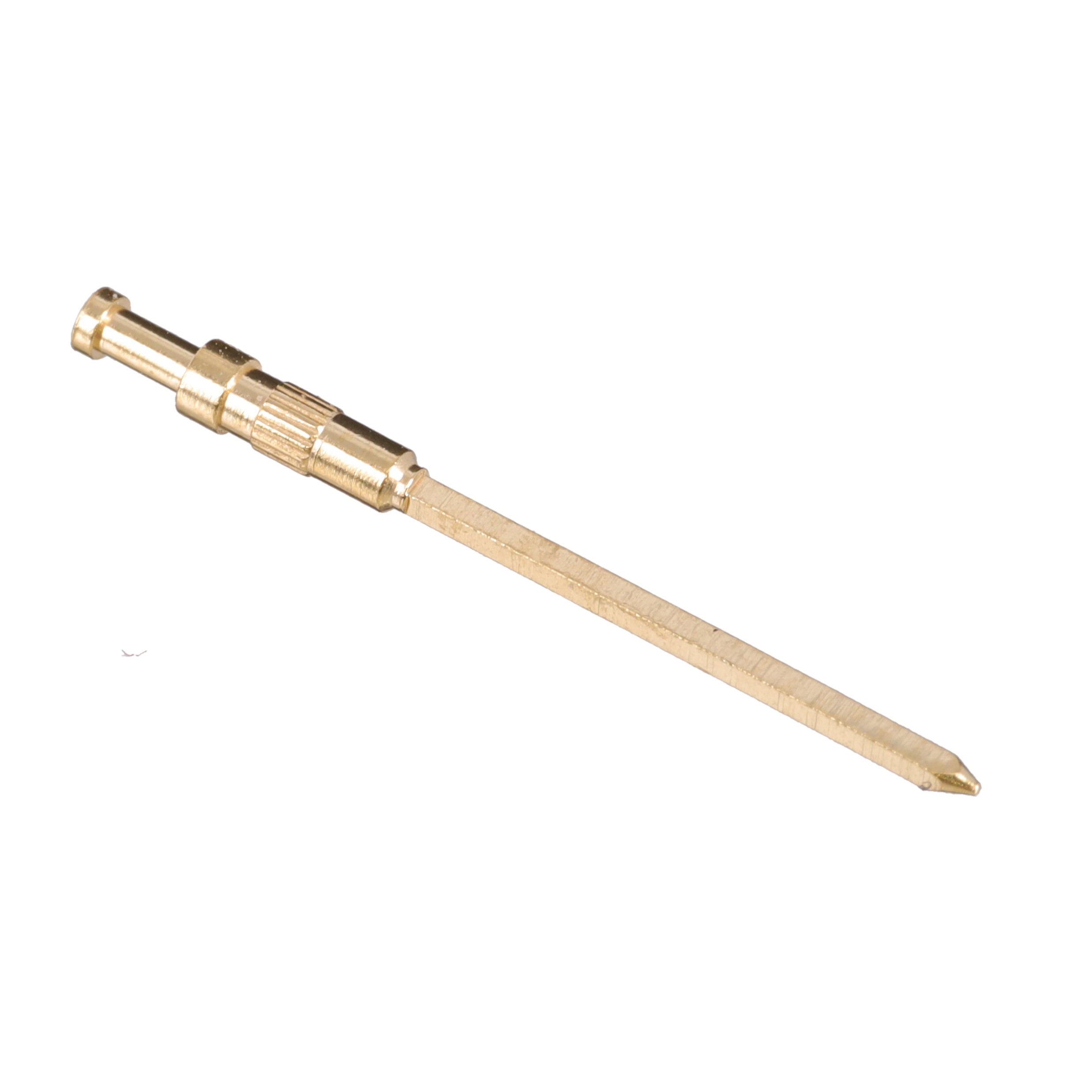

Mill-Max Manufacturing Corp. 1092-0-05-21-00-00-01-0 electronic component product image

Image is only for reference

Manufacturer No
1092-0-05-21-00-00-01-0
Availability
In Stock
Packaging
Bulk
Description
TERM TURRET PIN L=3.43MM GOLD
Detailed Description
Terminal Turret Connector Double End, Pin 0.135" (3.43mm) Gold
Payment
PayPalEast West BankVISAMastercardWestern Union
Delivery
DHLFedExUPSTNT
AS9120
ISO 13485
ERAI Member
VDE
ISO 9001
ISO 14001
Five-Star After-Sales Service Certification
Bavarian Chips Alliance
UKAS Management Systems
ANAB ISO/IEC 17021
IAF
Series
1092
Packaging
Bulk
Insulation
Non-Insulated
Termination
Press-Fit, Knurled, Wire Wrap
Manufacturer
Mill-Max Manufacturing Corp.
Mounting Type
Through Hole
Terminal Type
Double End, Pin
Contact Finish
Gold
Board Thickness
-
Flange Diameter
0.063" (1.60mm)
Staking Side ID
-
Staking Side OD
-
Contact Material
Brass Alloy
Insulation Color
-
Length - Overall
0.785" (19.94mm)
Number of Turrets
Single
Base Product Number
1092-0
Length - Above Board
0.135" (3.43mm)
Length - Below Flange
0.650" (16.51mm)
Material - Insulation
-
Diameter - Turret Head
0.053" (1.35mm)
Mounting Hole Diameter
0.056" (1.42mm)
Contact Finish Thickness
20.0µin (0.51µm)
AttributeValue
Series1092
PackagingBulk
InsulationNon-Insulated
TerminationPress-Fit, Knurled, Wire Wrap
ManufacturerMill-Max Manufacturing Corp.
Mounting TypeThrough Hole
Terminal TypeDouble End, Pin
Contact FinishGold
Board Thickness-
Flange Diameter0.063" (1.60mm)
Staking Side ID-
Staking Side OD-
Contact MaterialBrass Alloy
Insulation Color-
Length - Overall0.785" (19.94mm)
Number of TurretsSingle
Base Product Number1092-0
Length - Above Board0.135" (3.43mm)
Length - Below Flange0.650" (16.51mm)
Material - Insulation-
Diameter - Turret Head0.053" (1.35mm)
Mounting Hole Diameter0.056" (1.42mm)
Contact Finish Thickness20.0µin (0.51µm)
