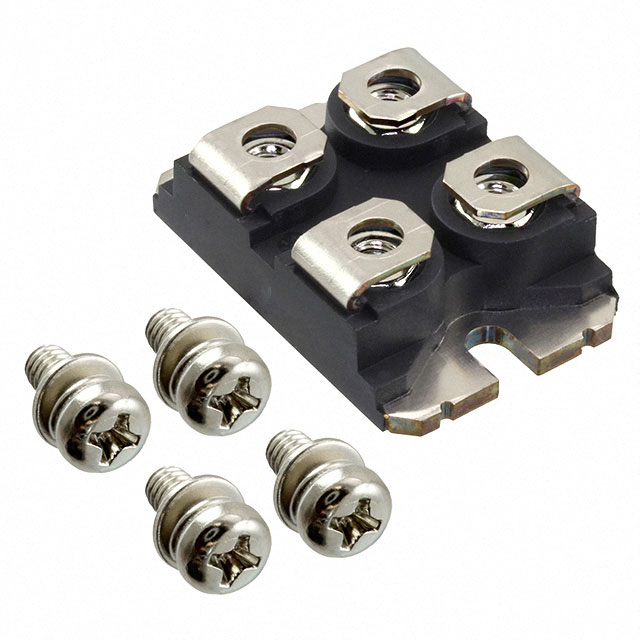

Microchip Technology MSC017SMA120J
Images are for reference only
Manufacturer
Manufacturer No
MSC017SMA120J
Availability
In Stock
Packaging
Bulk
Description
MOSFET SIC 1200V 17 MOHM SOT-227
Detailed Description
N-Channel 1200 V 88A (Tc) 278W (Tc) SOT-227
Datasheet
Payment
Delivery
Mfr
Microchip Technology
Grade
-
Series
MSiC™ MA
FET Type
N-Channel
Packaging
Bulk
Vgs (Max)
+23V, -10V
Technology
SiCFET (Silicon Carbide)
Qualification
-
Vgs(th) (Max) @ Id
2.7V @ 4.5mA (Typ)
Base Product Number
MSC017
Operating Temperature
-55°C ~ 175°C (TJ)
Rds On (Max) @ Id, Vgs
22mOhm @ 40A, 20V
Power Dissipation (Max)
278W (Tc)
Supplier Device Package
SOT-227
Gate Charge (Qg) (Max) @ Vgs
249 nC @ 20 V
Drain to Source Voltage (Vdss)
1200 V
Input Capacitance (Ciss) (Max) @ Vds
5280 pF @ 1000 V
Drive Voltage (Max Rds On, Min Rds On)
20V
Current - Continuous Drain (Id) @ 25°C
88A (Tc)
| Attribute | Value |
|---|---|
| Mfr | Microchip Technology |
| Grade | - |
| Series | MSiC™ MA |
| FET Type | N-Channel |
| Packaging | Bulk |
| Vgs (Max) | +23V, -10V |
| Technology | SiCFET (Silicon Carbide) |
| Qualification | - |
| Vgs(th) (Max) @ Id | 2.7V @ 4.5mA (Typ) |
| Base Product Number | MSC017 |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 22mOhm @ 40A, 20V |
| Power Dissipation (Max) | 278W (Tc) |
| Supplier Device Package | SOT-227 |
| Gate Charge (Qg) (Max) @ Vgs | 249 nC @ 20 V |
| Drain to Source Voltage (Vdss) | 1200 V |
| Input Capacitance (Ciss) (Max) @ Vds | 5280 pF @ 1000 V |
| Drive Voltage (Max Rds On, Min Rds On) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 88A (Tc) |
