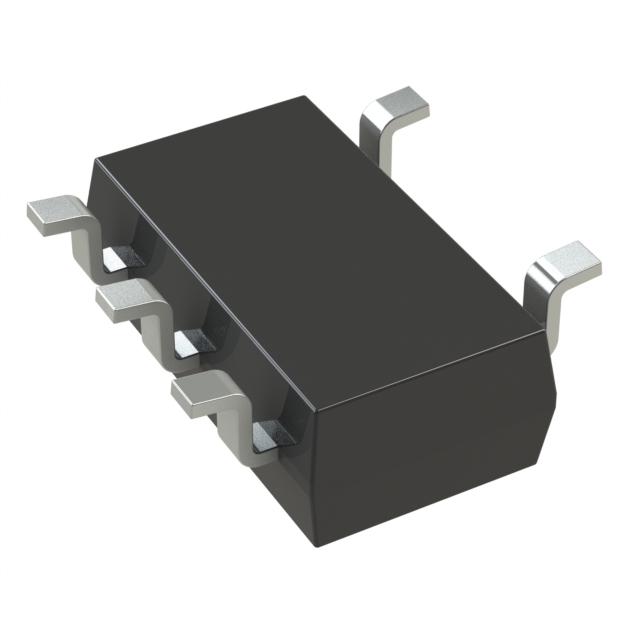

Microchip Technology DN1509K1-G
Images are for reference only
Manufacturer
Manufacturer No
DN1509K1-G
Quantity
389
Availability
In Stock
Package
SC-74A, SOT-753
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
MOSFET N-CH 90V 200MA SOT23-5
Detailed Description
N-Channel, Depletion Mode 90 V 200mA (Tj) 490mW (Ta) Surface Mount SOT-23-5
Datasheet
Payment
Delivery
Mfr
Microchip Technology
Grade
-
Series
-
FET Type
N-Channel, Depletion Mode
Packaging
Tape & Reel (TR); Cut Tape (CT)
Vgs (Max)
±20V
Technology
MOSFET (Metal Oxide)
FET Feature
-
Mounting Type
Surface Mount
Qualification
-
Package / Case
SC-74A, SOT-753
Vgs(th) (Max) @ Id
-
Base Product Number
DN1509K1
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
6Ohm @ 200mA, 0V
Power Dissipation (Max)
490mW (Ta)
Supplier Device Package
SOT-23-5
Drain to Source Voltage (Vdss)
90 V
Input Capacitance (Ciss) (Max) @ Vds
150 pF @ 25 V
Drive Voltage (Max Rds On, Min Rds On)
0V
Current - Continuous Drain (Id) @ 25°C
200mA (Tj)
| Attribute | Value |
|---|---|
| Mfr | Microchip Technology |
| Grade | - |
| Series | - |
| FET Type | N-Channel, Depletion Mode |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Mounting Type | Surface Mount |
| Qualification | - |
| Package / Case | SC-74A, SOT-753 |
| Vgs(th) (Max) @ Id | - |
| Base Product Number | DN1509K1 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 6Ohm @ 200mA, 0V |
| Power Dissipation (Max) | 490mW (Ta) |
| Supplier Device Package | SOT-23-5 |
| Drain to Source Voltage (Vdss) | 90 V |
| Input Capacitance (Ciss) (Max) @ Vds | 150 pF @ 25 V |
| Drive Voltage (Max Rds On, Min Rds On) | 0V |
| Current - Continuous Drain (Id) @ 25°C | 200mA (Tj) |
