Step1: Product

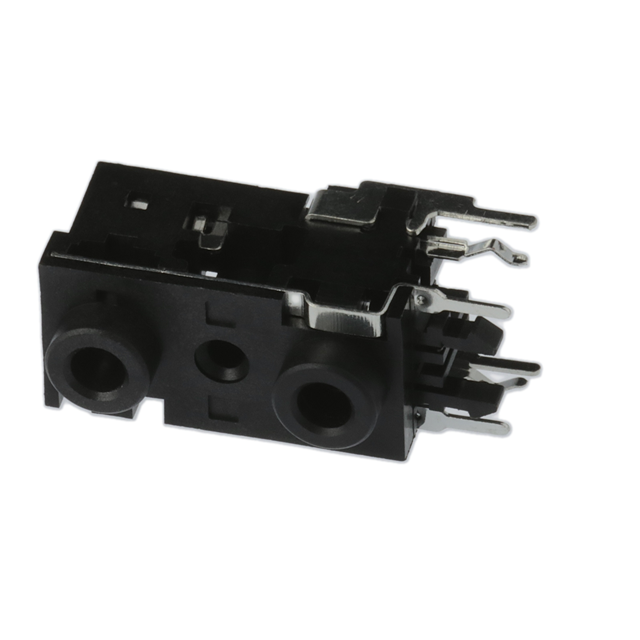

Kycon, Inc. STX-4235-3/3-N
Images are for reference only
Manufacturer
Manufacturer No
STX-4235-3/3-N
Availability
In Stock
Packaging
Tray
Description
CONN JACK STEREO 3.5MM VERT
Detailed Description
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
Datasheet
Payment
Delivery
Mfr
Kycon, Inc.
Gender
Female
Series
STX-4235
Features
Board Lock
Includes
-
Packaging
Tray
Shielding
Unshielded
Body Color
Black
Termination
Solder
Thread Size
-
Signal Lines
Stereo (3 Conductor, TRS)
Body Material
-
Cable Opening
-
Mounting Type
Through Hole, Right Angle
Connector Type
Phone Jack
Actual Diameter
0.142" (3.60mm)
Panel Hole Size
-
Voltage - Rated
16VDC
Contact Material
Phosphor Bronze
Housing Material
Polyamide (PA46), Nylon 4/6, Glass Filled
Insulation Color
-
Internal Switch(s)
Does Not Contain Switch
Base Product Number
STX
Mating Length/Depth
-
Current Rating (Amps)
300 mA
Operating Temperature
-25°C ~ 85°C
Contact Material - Plating
Tin
Number of Positions/Contacts
2 Sets of 3 Conductors, 6 Contacts
Industry Recognized Mating Diameter
3.50mm (0.141", 1/8", Mini Plug) - Headphone
| Attribute | Value |
|---|---|
| Mfr | Kycon, Inc. |
| Gender | Female |
| Series | STX-4235 |
| Features | Board Lock |
| Includes | - |
| Packaging | Tray |
| Shielding | Unshielded |
| Body Color | Black |
| Termination | Solder |
| Thread Size | - |
| Signal Lines | Stereo (3 Conductor, TRS) |
| Body Material | - |
| Cable Opening | - |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Phone Jack |
| Actual Diameter | 0.142" (3.60mm) |
| Panel Hole Size | - |
| Voltage - Rated | 16VDC |
| Contact Material | Phosphor Bronze |
| Housing Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Insulation Color | - |
| Internal Switch(s) | Does Not Contain Switch |
| Base Product Number | STX |
| Mating Length/Depth | - |
| Current Rating (Amps) | 300 mA |
| Operating Temperature | -25°C ~ 85°C |
| Contact Material - Plating | Tin |
| Number of Positions/Contacts | 2 Sets of 3 Conductors, 6 Contacts |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
