Step1: Product

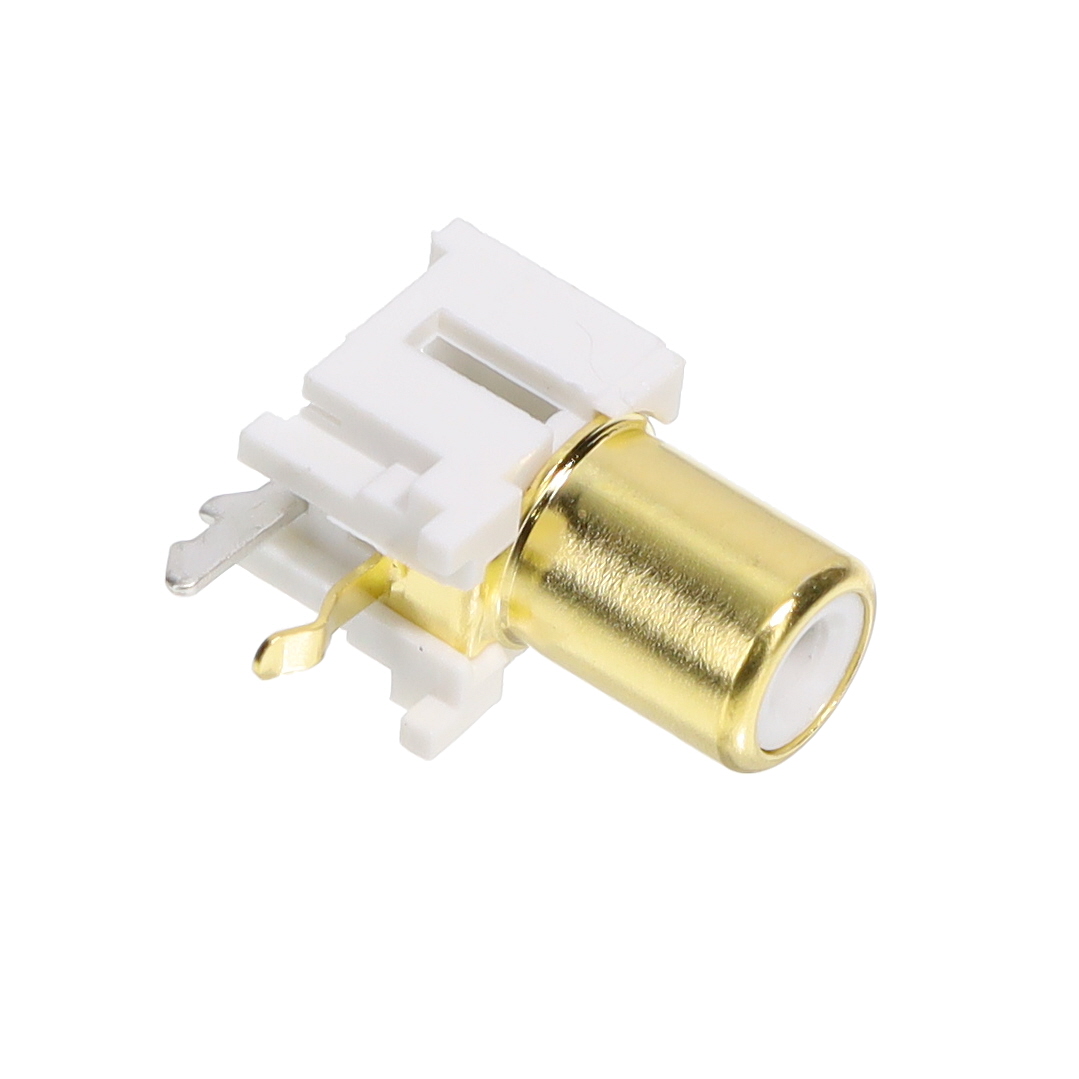

Kycon, Inc. KLPX-0848A-2-W-G
Images are for reference only
Manufacturer
Manufacturer No
KLPX-0848A-2-W-G
Availability
In Stock
Packaging
Bulk
Description
CONN RCA PHONO JACK R/A
Detailed Description
3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Kinked Pin
Datasheet
Payment
Delivery
Mfr
Kycon, Inc.
Gender
Female
Series
KLPX
Features
Board Lock
Includes
-
Packaging
Bulk
Shielding
Unshielded
Body Color
Silver, White
Termination
Kinked Pin
Thread Size
-
Signal Lines
Mono
Body Material
-
Cable Opening
-
Mounting Type
Through Hole, Right Angle
Connector Type
Phono (RCA) Jack
Actual Diameter
-
Panel Hole Size
-
Voltage - Rated
-
Contact Material
Brass
Housing Material
Polybutylene Terephthalate (PBT)
Insulation Color
White
Internal Switch(s)
Does Not Contain Switch
Mating Length/Depth
-
Operating Temperature
-25°C ~ 80°C
Contact Material - Plating
Tin
Number of Positions/Contacts
2 Conductors, 2 Contacts
Industry Recognized Mating Diameter
3.20mm ID, 9.00mm OD (RCA)
| Attribute | Value |
|---|---|
| Mfr | Kycon, Inc. |
| Gender | Female |
| Series | KLPX |
| Features | Board Lock |
| Includes | - |
| Packaging | Bulk |
| Shielding | Unshielded |
| Body Color | Silver, White |
| Termination | Kinked Pin |
| Thread Size | - |
| Signal Lines | Mono |
| Body Material | - |
| Cable Opening | - |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Phono (RCA) Jack |
| Actual Diameter | - |
| Panel Hole Size | - |
| Voltage - Rated | - |
| Contact Material | Brass |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Insulation Color | White |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | - |
| Operating Temperature | -25°C ~ 80°C |
| Contact Material - Plating | Tin |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Industry Recognized Mating Diameter | 3.20mm ID, 9.00mm OD (RCA) |
