Step1: Product

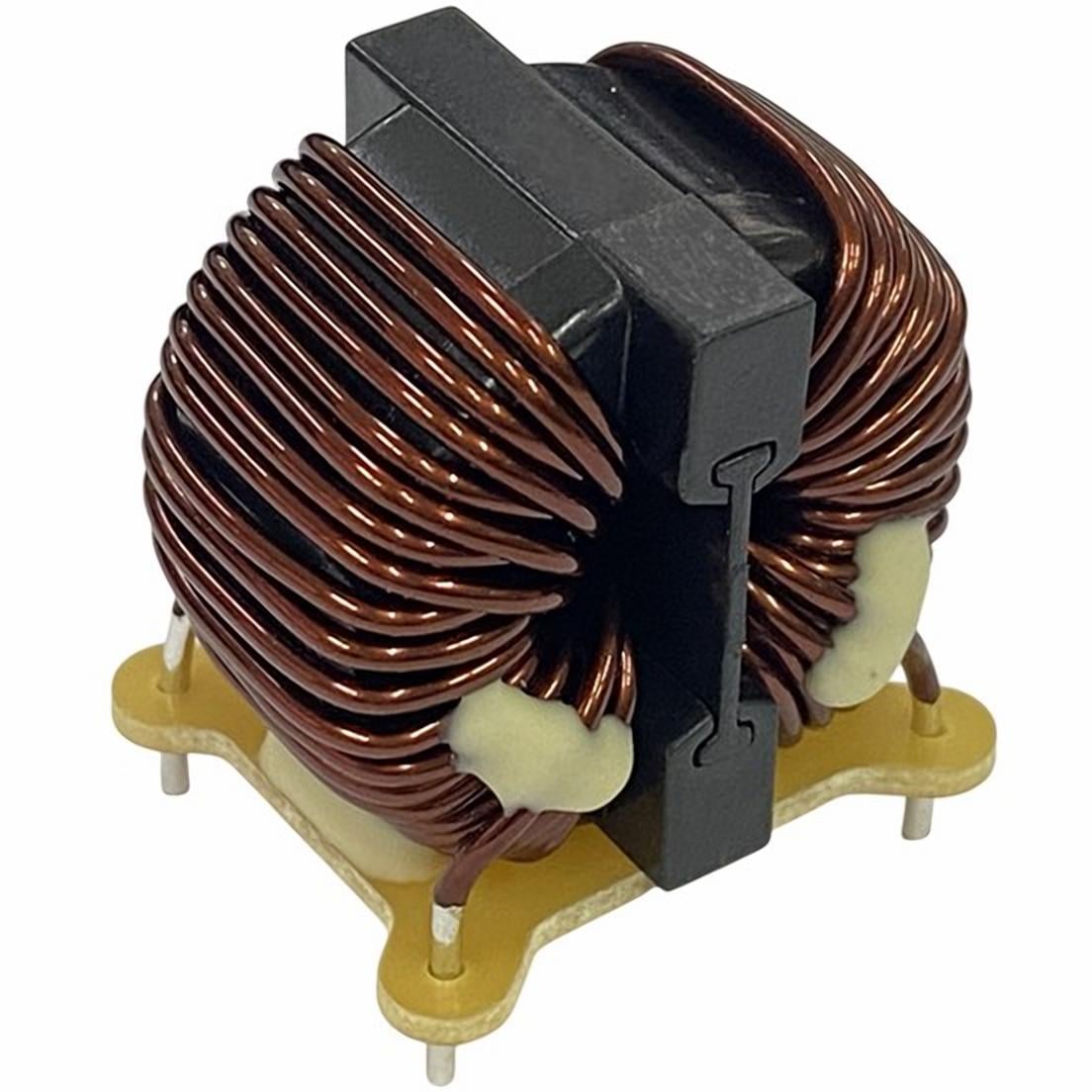

KEMET SCT23X-070-1R1A025V
Images are for reference only
Manufacturer
Manufacturer No
SCT23X-070-1R1A025V
Package
Vertical, No Base, 4 PC Pin
Packaging
Tray
Description
IND COMMON MODE 3.36MH 7A
Detailed Description
3.36 mH @ 100 kHz 2 Line Common Mode Choke Through Hole 7A DCR 28.9mOhm
Datasheet
Payment
Delivery
Series
SCT23X
Ratings
-
Features
-
Packaging
Tray
Filter Type
Power Line
Height (Max)
1.142" (29.00mm)
Manufacturer
KEMET
Mounting Type
Through Hole
Package / Case
Vertical, No Base, 4 PC Pin
Approval Agency
-
Number of Lines
2
Size / Dimension
1.299" L x 0.949" W (33.00mm x 24.10mm)
Voltage Rating - AC
500V
Voltage Rating - DC
500V
Current Rating (Max)
7A
Operating Temperature
-40°C ~ 130°C
Inductance @ Frequency
3.36 mH @ 100 kHz
DC Resistance (DCR) (Max)
28.9mOhm
| Attribute | Value |
|---|---|
| Series | SCT23X |
| Ratings | - |
| Features | - |
| Packaging | Tray |
| Filter Type | Power Line |
| Height (Max) | 1.142" (29.00mm) |
| Manufacturer | KEMET |
| Mounting Type | Through Hole |
| Package / Case | Vertical, No Base, 4 PC Pin |
| Approval Agency | - |
| Number of Lines | 2 |
| Size / Dimension | 1.299" L x 0.949" W (33.00mm x 24.10mm) |
| Voltage Rating - AC | 500V |
| Voltage Rating - DC | 500V |
| Current Rating (Max) | 7A |
| Operating Temperature | -40°C ~ 130°C |
| Inductance @ Frequency | 3.36 mH @ 100 kHz |
| DC Resistance (DCR) (Max) | 28.9mOhm |
