Step1: Product

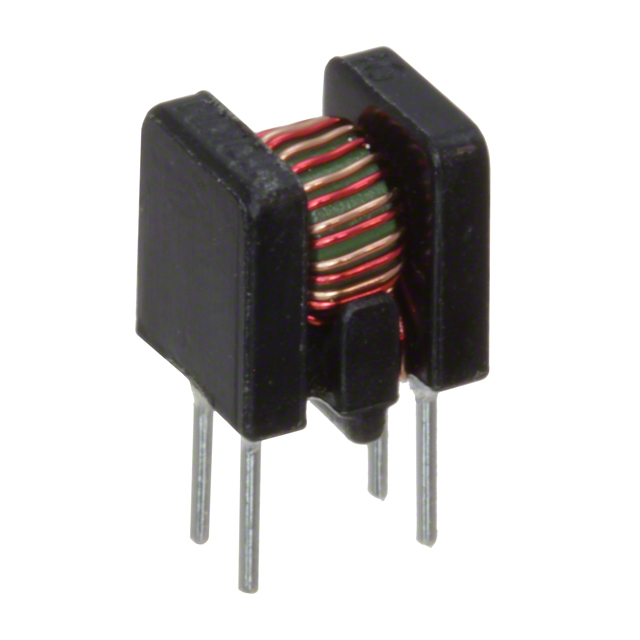

KEMET SBT-0180W
Series
SBT-01W
Ratings
-
Features
-
Packaging
Bulk
Filter Type
Signal Line
Height (Max)
0.315" (8.00mm)
Manufacturer
KEMET
Mounting Type
Through Hole
Package / Case
Vertical, 4 PC Pin
Approval Agency
-
Number of Lines
2
Size / Dimension
0.295" L x 0.252" W (7.50mm x 6.40mm)
Base Product Number
SBT-018
Voltage Rating - AC
-
Voltage Rating - DC
50V
Current Rating (Max)
500mA
Operating Temperature
-25°C ~ 70°C
Inductance @ Frequency
80 µH @ 1 kHz
DC Resistance (DCR) (Max)
55mOhm
| Attribute | Value |
|---|---|
| Series | SBT-01W |
| Ratings | - |
| Features | - |
| Packaging | Bulk |
| Filter Type | Signal Line |
| Height (Max) | 0.315" (8.00mm) |
| Manufacturer | KEMET |
| Mounting Type | Through Hole |
| Package / Case | Vertical, 4 PC Pin |
| Approval Agency | - |
| Number of Lines | 2 |
| Size / Dimension | 0.295" L x 0.252" W (7.50mm x 6.40mm) |
| Base Product Number | SBT-018 |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 50V |
| Current Rating (Max) | 500mA |
| Operating Temperature | -25°C ~ 70°C |
| Inductance @ Frequency | 80 µH @ 1 kHz |
| DC Resistance (DCR) (Max) | 55mOhm |
