Step1: Product

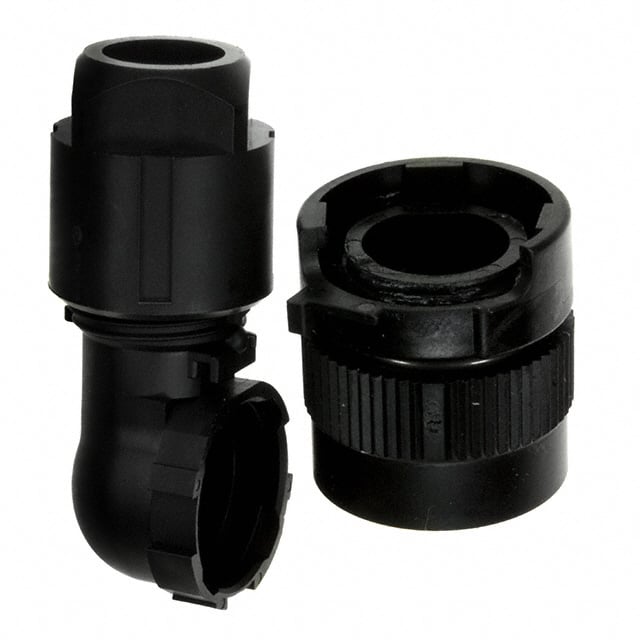

JAE Electronics JN1FS10SL2
Images are for reference only
Manufacturer
Manufacturer No
JN1FS10SL2
Quantity
8
Availability
In Stock
Packaging
Box
Description
CONN PLG HSG FMAL 10PS INLINE RA
Detailed Description
10 Position Circular Connector Plug Housing Free Hanging (In-Line), Right Angle Backshell, Coupling Nut, Rotatable
Datasheet
Payment
Delivery
Note
Contacts Sold Separately
Type
For Female Sockets
Series
JN1
Features
Backshell, Coupling Nut, Rotatable
Includes
-
Packaging
Box
Shielding
Unshielded
Orientation
N (Normal)
Contact Size
22
Contact Type
Crimp
Manufacturer
JAE Electronics
Shell Finish
-
Contact Shape
Circular
Housing Color
Black
Mounting Type
Free Hanging (In-Line), Right Angle
Connector Type
Plug Housing
Fastening Type
Push-Twist
Shell Material
Synthetic Resin
Insert Material
Synthetic Resin
Shell Size, MIL
-
Mounting Feature
-
Ingress Protection
IP67 - Dust Tight, Waterproof
Base Product Number
JN1FS10S
Number of Positions
10
Shell Size - Insert
S
Operating Temperature
-20°C ~ 125°C
Material Flammability Rating
-
| Attribute | Value |
|---|---|
| Note | Contacts Sold Separately |
| Type | For Female Sockets |
| Series | JN1 |
| Features | Backshell, Coupling Nut, Rotatable |
| Includes | - |
| Packaging | Box |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Contact Size | 22 |
| Contact Type | Crimp |
| Manufacturer | JAE Electronics |
| Shell Finish | - |
| Contact Shape | Circular |
| Housing Color | Black |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Connector Type | Plug Housing |
| Fastening Type | Push-Twist |
| Shell Material | Synthetic Resin |
| Insert Material | Synthetic Resin |
| Shell Size, MIL | - |
| Mounting Feature | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Base Product Number | JN1FS10S |
| Number of Positions | 10 |
| Shell Size - Insert | S |
| Operating Temperature | -20°C ~ 125°C |
| Material Flammability Rating | - |
