Step1: Product

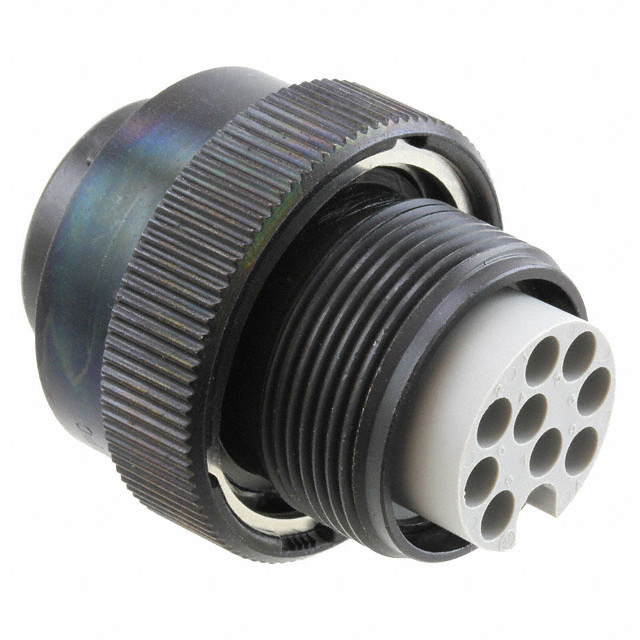

JAE Electronics JL05-6A18-1PC-F0-R
Images are for reference only
Manufacturer
Manufacturer No
JL05-6A18-1PC-F0-R
Quantity
3
Availability
In Stock
Packaging
Bulk
Description
CONN PLG HSG MALE 10POS INLINE
Detailed Description
10 (9 + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
Datasheet
Payment
Delivery
Note
Contacts Sold Separately
Type
For Male Pins
Series
JL05
Features
Coupling Nut
Includes
-
Packaging
Bulk
Shielding
Unshielded
Orientation
N (Normal)
Contact Size
16
Contact Type
Crimp
Manufacturer
JAE Electronics
Shell Finish
Zinc
Contact Shape
Circular
Housing Color
Black
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug Housing
Fastening Type
Bayonet Lock
Shell Material
Aluminum
Insert Material
Synthetic Resin
Shell Size, MIL
-
Mounting Feature
-
Ingress Protection
IP67 - Dust Tight, Waterproof
Base Product Number
JL05-6A1
Number of Positions
10 (9 + PE)
Shell Size - Insert
18-1
Operating Temperature
-55°C ~ 125°C
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Note | Contacts Sold Separately |
| Type | For Male Pins |
| Series | JL05 |
| Features | Coupling Nut |
| Includes | - |
| Packaging | Bulk |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Contact Size | 16 |
| Contact Type | Crimp |
| Manufacturer | JAE Electronics |
| Shell Finish | Zinc |
| Contact Shape | Circular |
| Housing Color | Black |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug Housing |
| Fastening Type | Bayonet Lock |
| Shell Material | Aluminum |
| Insert Material | Synthetic Resin |
| Shell Size, MIL | - |
| Mounting Feature | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Base Product Number | JL05-6A1 |
| Number of Positions | 10 (9 + PE) |
| Shell Size - Insert | 18-1 |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
