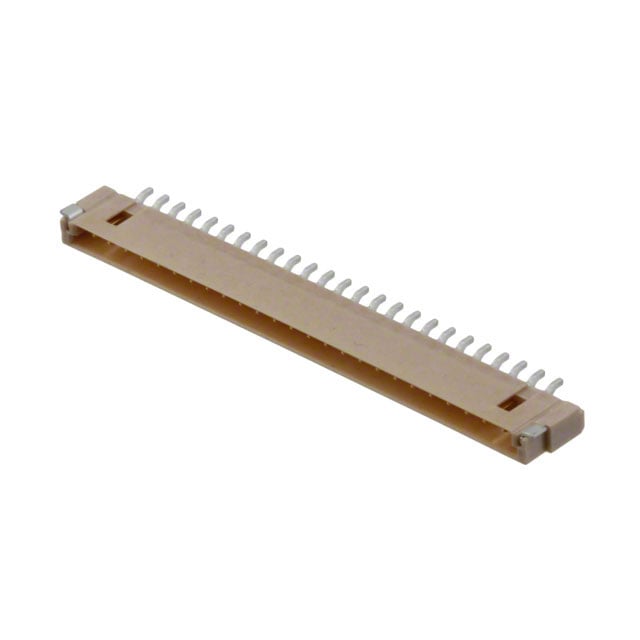

JAE Electronics FI-S25P-HFE
Images are for reference only
Manufacturer
Manufacturer No
FI-S25P-HFE
Availability
In Stock
Packaging
Strip
Description
CONN HEADER SMD R/A 25POS 1.25MM
Detailed Description
Connector Header Surface Mount, Right Angle 25 position 0.049" (1.25mm)
Datasheet
Payment
Delivery
Mfr
JAE Electronics
Style
Board to Cable/Wire
Series
FI
Features
Solder Retention
Packaging
Strip
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
-
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount, Right Angle
Connector Type
Receptacle
Fastening Type
Friction Lock
Number of Rows
1
Pitch - Mating
0.049" (1.25mm)
Voltage Rating
200V
Contact Material
Copper Alloy
Insulation Color
Beige
Insulation Height
0.071" (1.80mm)
Ingress Protection
-
Base Product Number
FI-S25
Insulation Material
Liquid Crystal Polymer (LCP), Glass Filled
Number of Positions
25
Row Spacing - Mating
-
Contact Finish - Post
Tin or Tin-Alloy
Contact Length - Post
-
Current Rating (Amps)
1A per Contact
Operating Temperature
-40°C ~ 80°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Gold
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | JAE Electronics |
| Style | Board to Cable/Wire |
| Series | FI |
| Features | Solder Retention |
| Packaging | Strip |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | - |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Receptacle |
| Fastening Type | Friction Lock |
| Number of Rows | 1 |
| Pitch - Mating | 0.049" (1.25mm) |
| Voltage Rating | 200V |
| Contact Material | Copper Alloy |
| Insulation Color | Beige |
| Insulation Height | 0.071" (1.80mm) |
| Ingress Protection | - |
| Base Product Number | FI-S25 |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Number of Positions | 25 |
| Row Spacing - Mating | - |
| Contact Finish - Post | Tin or Tin-Alloy |
| Contact Length - Post | - |
| Current Rating (Amps) | 1A per Contact |
| Operating Temperature | -40°C ~ 80°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
