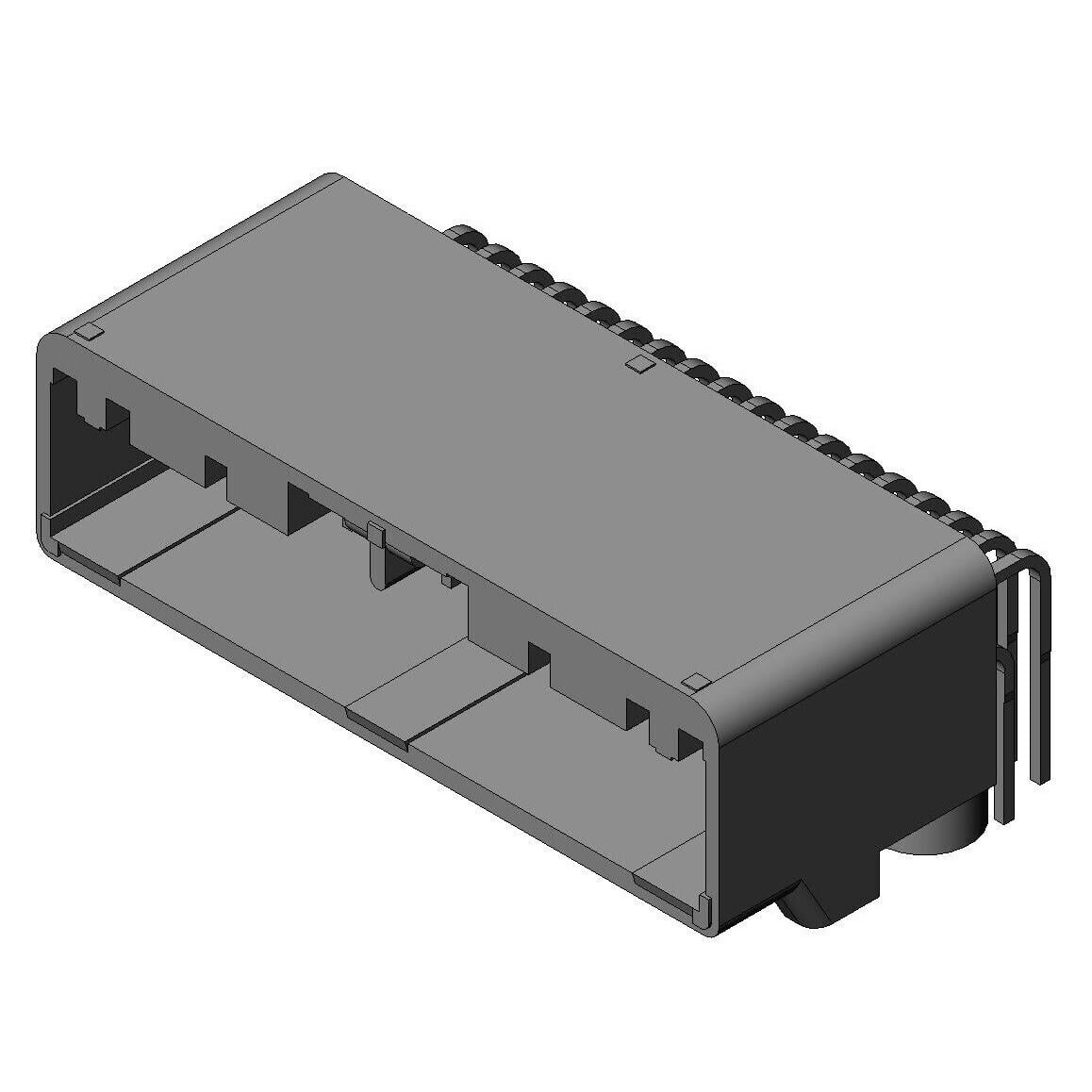

JAE Electronics MX34036NF2
Images are for reference only
Manufacturer
Manufacturer No
MX34036NF2
Quantity
1,095
Availability
In Stock
Packaging
Tube
Description
CONN HEADER R/A 36POS 2.2MM
Detailed Description
Connector Header Through Hole, Right Angle 36 position 0.087" (2.20mm)
Datasheet
Payment
Delivery
Mfr
JAE Electronics
Style
Board to Cable/Wire
Series
MX34
Features
Mounting Flange
Packaging
Tube
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
Automotive
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Locking Ramp
Number of Rows
2
Pitch - Mating
0.087" (2.20mm)
Voltage Rating
-
Contact Material
Brass
Insulation Color
Gray
Insulation Height
0.626" (15.90mm)
Ingress Protection
-
Base Product Number
MX34036N
Insulation Material
Syndiotactic Polystyrene (SPS), Glass Filled
Number of Positions
36
Row Spacing - Mating
0.118" (3.00mm)
Contact Finish - Post
Tin
Contact Length - Post
0.126" (3.20mm)
Current Rating (Amps)
3A
Operating Temperature
-40°C ~ 85°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Tin
Contact Length - Mating
0.303" (7.70mm)
Number of Positions Loaded
All
Material Flammability Rating
-
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | JAE Electronics |
| Style | Board to Cable/Wire |
| Series | MX34 |
| Features | Mounting Flange |
| Packaging | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Locking Ramp |
| Number of Rows | 2 |
| Pitch - Mating | 0.087" (2.20mm) |
| Voltage Rating | - |
| Contact Material | Brass |
| Insulation Color | Gray |
| Insulation Height | 0.626" (15.90mm) |
| Ingress Protection | - |
| Base Product Number | MX34036N |
| Insulation Material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Number of Positions | 36 |
| Row Spacing - Mating | 0.118" (3.00mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.126" (3.20mm) |
| Current Rating (Amps) | 3A |
| Operating Temperature | -40°C ~ 85°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.303" (7.70mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | - |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
